Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized
Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized
Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized
Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized
Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized
Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized
Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized
Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized
Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized
Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized

Top Quality A Frame Brooding Chicken Cage Pullet Cage With Electro-Galvanized

A Frame Pullet Cage System is designed for pullets which bird age (rearing period) is from 1 week to 10 week old. It is the cage system surface treatment is hot dipped galvanization or cold galvanization according to clients’ requests, It is also equipped with automatic manure belt system or manure scraper in the manure pits to collect the chicken manure outside of house.

  • Added: 2021-11-11
  • Views: 2105
Make an inquiry
  • Parameter
  • Features
  • Advantage
  • Detailed introduction

Parameter

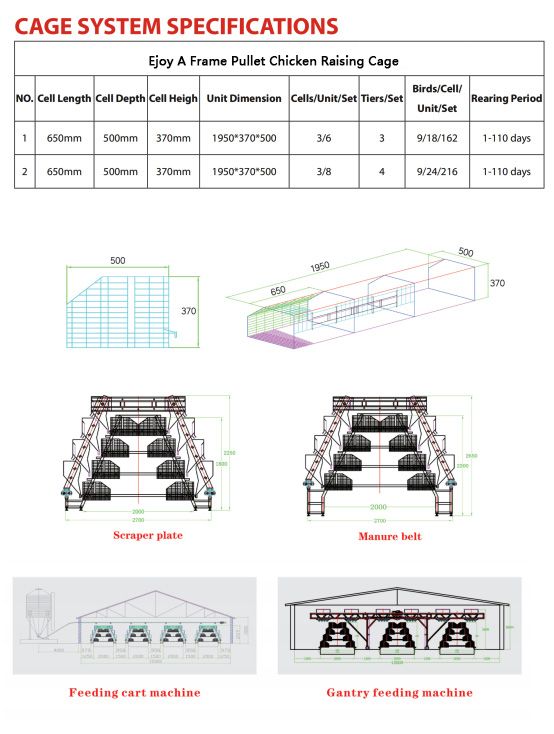

Chicken Pullet Cage

Features

● Galvanized low carbon steel cold drawn steel wire has high tensile strength and extension rate.


● Raising density per unit area can increase 50%-100% compared with flooring system.


● The possibilities of infection diseases caused by manure decrease, thus death rate is minimized.


● Amount of exercise is small, thus more feed is saved by the special design of the feed trough which has feed trough adjust board.


● Convenient for observing growth condition of birds, grouping and selection.


● Uniformity and health condition are both excellent as there is enough place for birds feeding and drinking.


● Padding cost for flooring system is deducted.


● Dramatically reduces birds disability.


● Less work labor and easy management because all system can be equipped by automatic equipment for feeding, drinking, manure collection and chicken house environment.

Advantage

● Each unit dimension of the pullet cage is 195*50*37cm, 3 cells/unit, with 9 birds per cell, each cell dimension is 65*50*37cm, so each birds can get 362 cm². At least before 110 days.


● Bottom net is densely welded together, the plastic cushion which put on the bottom cage mesh can protect the pullet feet and make them more comfortable.


● The Drinking System can be automatic nipple drinking line and manual feeders and drinkers for first two weeks while the pullet are too small to get water nipple drinkers; the nipple drinkers are stainless steel ones with round or square pipes, it can be fitted with water cups under the nipple;


● the pipes can be adjusted in higher level as the pullet growing bigger and bigger day by day because the grid meshes has empty design in the middle place to adjust the pipes higher.


● The feeding trough has adjust board to get into different height during different period. The adjust board is fitted with cages above the trough inside part, it can be PVC or steel ones.


● The 1--3 tiers of cages can be fitted with manure curtain on the back of the cage meshes in case of the dropping manure from upper tiers.
