Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages
Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages

Top Quality H Frame Layer Cage Automatic Chicken Layer Cage Electric Layer Cages

Battery cage size: 840*1250*650mm

Hot dip galvanized wire mesh: Corrosion resistance thereof is 3-4 times of that of ordinary hot galvanized wire mesh.

Egg conveying is specially designed for large farm, which can convey eggs for 1km, the EU standard conveying system can guarantee sustainable and stable performance of the whole system.

  • Added: 2021-08-09
  • Views: 6631
Make an inquiry
  • Parameter
  • Features
  • Advantage
  • Detailed introduction

Parameter

Number of LayersSize (Length*Depth)Height/LayerBirds/CellCell/LayerBirds/Unit
4 layers840*1250mm650mm128384
5 layers840*1250mm650mm128480
6 layers840*1250mm650mm128576
8 layers840*1250mm650mm128768

batter cage

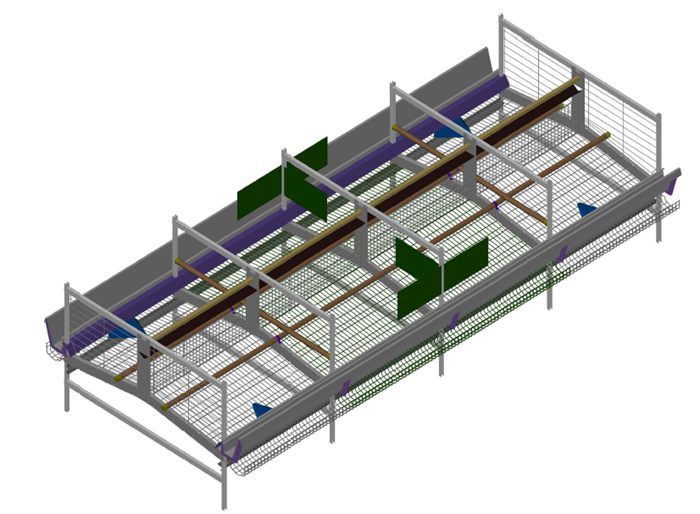

Battery Cage size: 840*1250*650mm

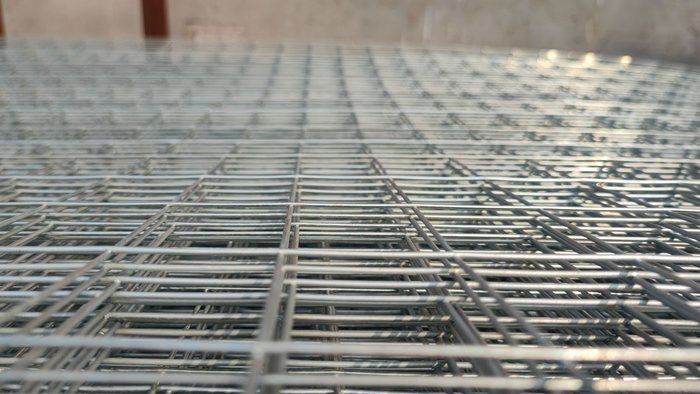

Hot dip galvanized wire mesh: Corrosion resistance thereof is 3-4 times of that of ordinary hot galvanized wire mesh.

cage mesh

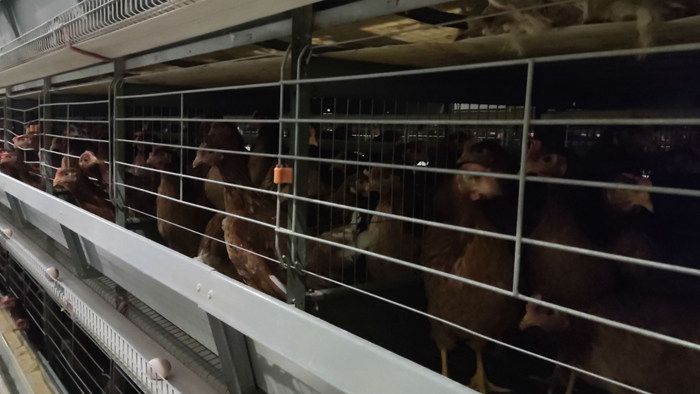

Sliding cage door: It is limited to bending, convenient in operation and good for taking the chickens in and out.

battery cage (2)

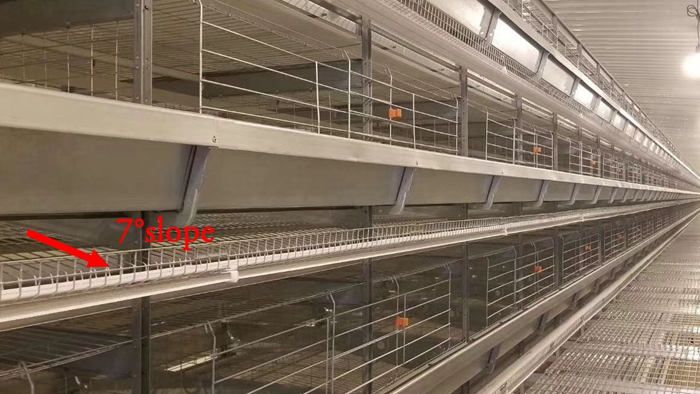

Battery Cage Bottom wire: It has a slope of 7 degrees and high elasticity due to being installed on the tension wire, and protects the eggs during falling and rolling.

Egg protective damper: It prevents the chickens pecking eggs, and avoids chicken manure falling on the trough on bottom layer.

battery cage 1

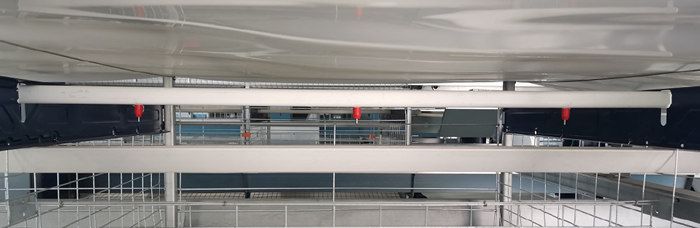

V-shaped water trough is located below the waterline to avoid the water falling on the manure slider.

water line

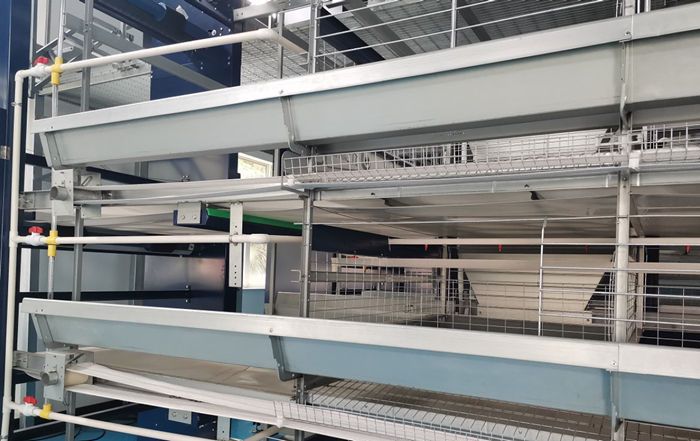

Battery Cage System Hot galvanized feed troughhigh strength for people to stand on; V-shape trough bottom and high external edge for less feed waste.

battery cage 3

Features

Battery Cage system top wire : It is used to prevent the chickens pecking the manure slider, and cage layer is tall and good in ventilation.

Plastic parts : There are few plastic parts, so that the cage is convenient to install and easy to maintain.

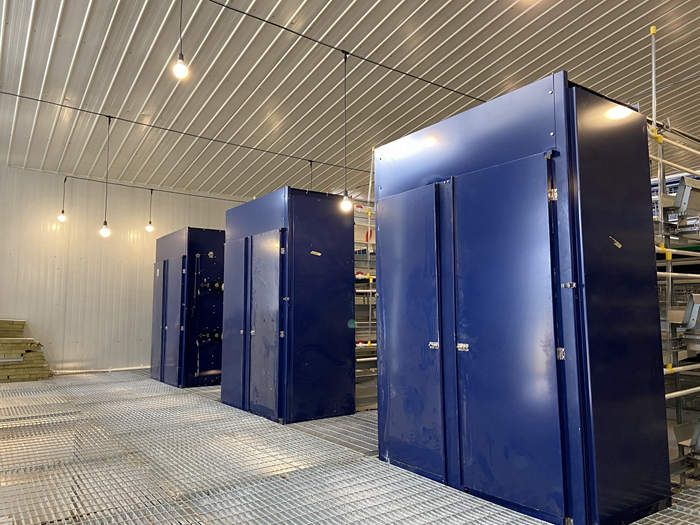

The tail end closed device for manure removal can effectively improve the environment of the chicken house.

manure removal

Advantage

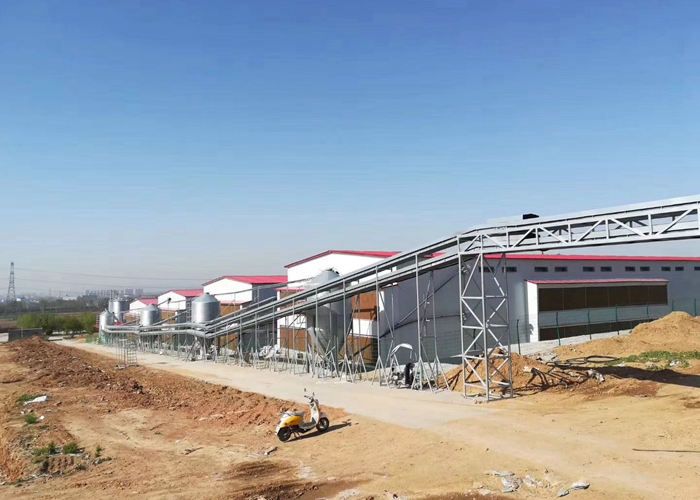

Automatic egg conveying system

Egg conveying is specially designed for large farm, which can convey eggs for 1km, the EU standard conveying system can guarantee sustainable and stable performance of the whole system.

egg convyer
