A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel
A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel
A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel
A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel
A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel
A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel
A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel
A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel
A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel
A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel

A Frame Automatic Chicken Layer Cage Poultry Cages Hot Galvanized Steel

Electro Galvanize:surface smooth, bright, zinc coating 20-30g/m2, in the humid environment, it is easy to get rusty. service life :8-10years. the cost is low, even after rust, it does not affect the use. people like because it is low cost, and effcient usage.

  • Added: 2021-08-19
  • Views: 3976
Make an inquiry
  • Parameter
  • Features
  • Advantage
  • Detailed introduction

Parameter

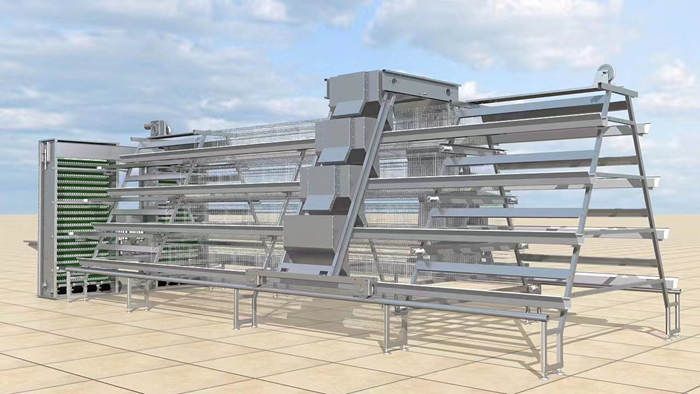

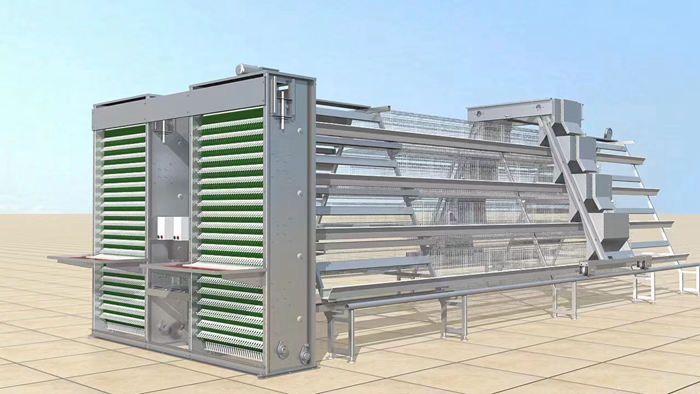

The A frame poultry cage is designed both for open and close house world wide, especially using widely in tropical country such as Africa, South East Asia, South Asia where the farmers have large scale land for the big poultry farms. The A frame layer cage system is good quality which is certified by ISO9001:2008 with scientific design, efficient working, strong structure with lower cost through installation service.how much is battery cage?

closed Chicken cage house

1. opened layer chicken house

Item NO.

Cell

Length

Cell

Depth

Cell

Height

Dimension

/Unit (Mm)

Cells/Unit

Per Set



Tier/Set

Birds Per

Cell/Unit/Set

E390-1

390

350

380

1950*350*380

5/6

3

3/15/90

E390-2

390

350

380

1950*350*380

5/8

4

3/15/120

E390-3

390

450

410

1950*450*410

5/6

3

4/16/120

E390-4

390

450

410

1950*450*410

5/8

4

4/16/160

E430

430

420

410

2150*420*410

5/6

3

4/20/120

A430

430

420

410

2150*420*410

5/8

4

4/20/160

how much is battery cage


Features

● Both the cage meshes and cage leg support frames materials are the Q235A steel which ensure the cage meshes give how much is battery cage

enough elasticity to the layer birds and make the chicken feel good for laying eggs;

● Feed troughs: made of PVC ones(100% new material) or the 1.0-1.20mm thick hot galvanized steel sheets with round

edge for convenient cleaning, solid and durable design.

● Electro Galvanize:surface smooth, bright, zinc coating 20-30g/m2, in the humid environment, it is easy to get rusty. service life :8-10years. the cost is low, even after rust, it does not affect the use. people like because it is low cost, and effcient usage.

● Hot galvanized: 1. surface is thick, can reach 500g/m2, it has the corrossion resistance of high strength2. the surface have zinc knot, not smooth, service life: 25 years or even longer)

● PVC powder after electric galvanized: 1. surface smooth, bright , color can  choose, red,  yellow, blue, green, black, white. because two layers of surface treatment, antitrust ability enhancement, it is not easy to rust, service life 20 years. moderate price and cost efficient for middle size farm)

● Both the cage meshes and cage leg support frames materials are the Q235A steel which ensure the cage meshes give enough elasticity to the layer birds and make the chicken feel good for laying eggs;

● Feed troughs: made of PVC ones(100% new material) or the 1.0--1.20mm thick hot galvanized steel sheets with round edge for convenient cleaning, solid and durable design.


Automatic Feeding System how much is battery cage

● Both of the traveling hopper(feeding carts) type and chain feeding system are available.

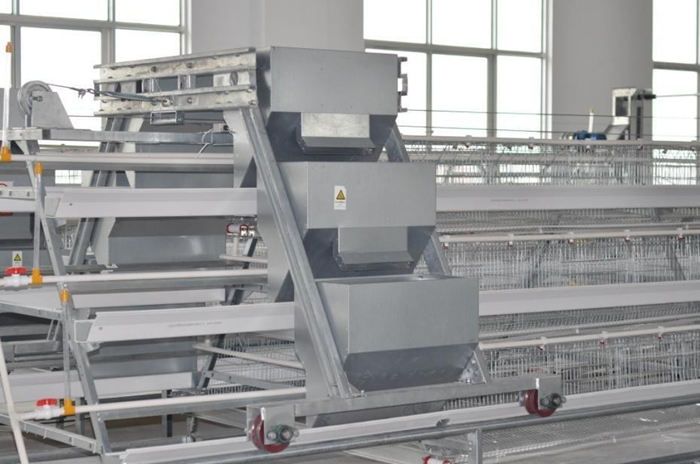

● The feeding cart connected with the silo by the transverse feeding auger is more popular here.In this system, feed is distributed automatically to the feed carts from the feed silos by the spiral augers located in a pipe with 90-150 mm diameter.

● The augers and chain materials made in South Africa, also the best quality worldwide

automatic feeding for poultry layer cage

automatic feeding cart

layer cage Gantry feeding system

Drinking Systems

● It is made up by the square pipes(thickness 2.5mm) or round pipes(thickness 2.0mm) with 360 degree flowing nipple drinkers, water drip cups and water pressure regulators, water level indicator, splits, water filters makes sure the water is clean and no harmful to the layers.

● The medicater(from France)to farmers, the best quality founded worldwide because we are one of the authorized distributor of DOSATRON in china. It ensures the layer birds health during all period.

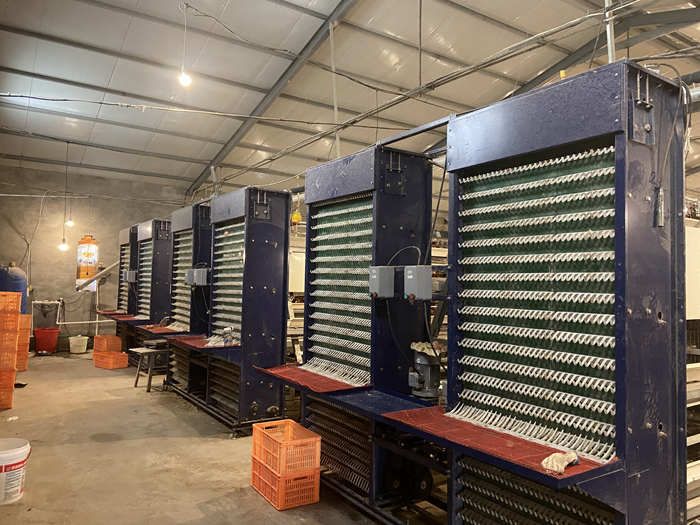

Automatic Egg Collection System how much is battery cage

● It is made by egg collection machines, egg collection belts and egg belt clips.

automatic egg collection

automatic egg collection

Automatic Manure Removal System  how much is battery cage

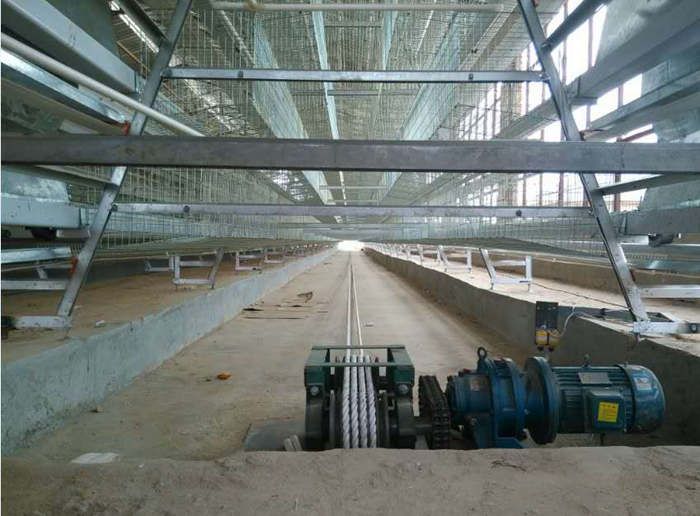

● The scraper type manure collection machines are designed for A frame cage system which has manure pit under the cage. The manure dropping from the cages in the manure pits, and the scraper can collect the manure from the manure pit to the outside of the chicken house.

manure scraper for poultry farm

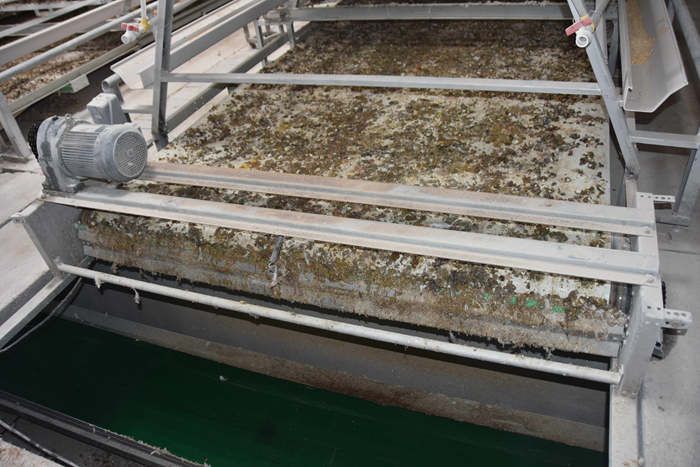

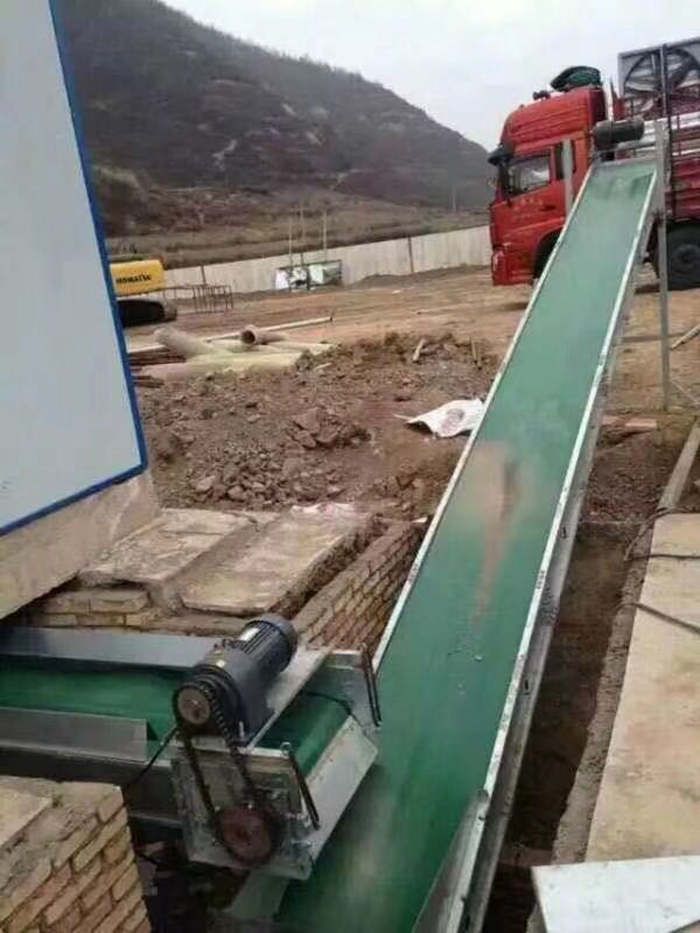

●The manure belt type manure collection machines is designed for A frame cage systems which has manure belts under the cages. The manure dropping from the cages onto the manure belts, and the machines with scraper can collect the manure to transverse manure conveyors and then delivered to the outside of the chicken house. This system is popular design in China market or other countries.

automatic manure belt cleaning for poultry farm

automatic manure cleaning system for poultry

Advantage

● Saving more cost for farmers because its lower investment as H frame layer cage system.

● It is easily to deliver and installation in clients farm and make maintenance, removal of stress factors;  easy to control of parasitic disease like cocidiosis and worm infestation;

● The cage housing is ideal for the area of moderated climate conditions where the day temperature in summer is not too high and fall too low. The overlap parts is bigger so the chicken house can get much better ventilation, it can be used for both open or close house according to clients needs.
