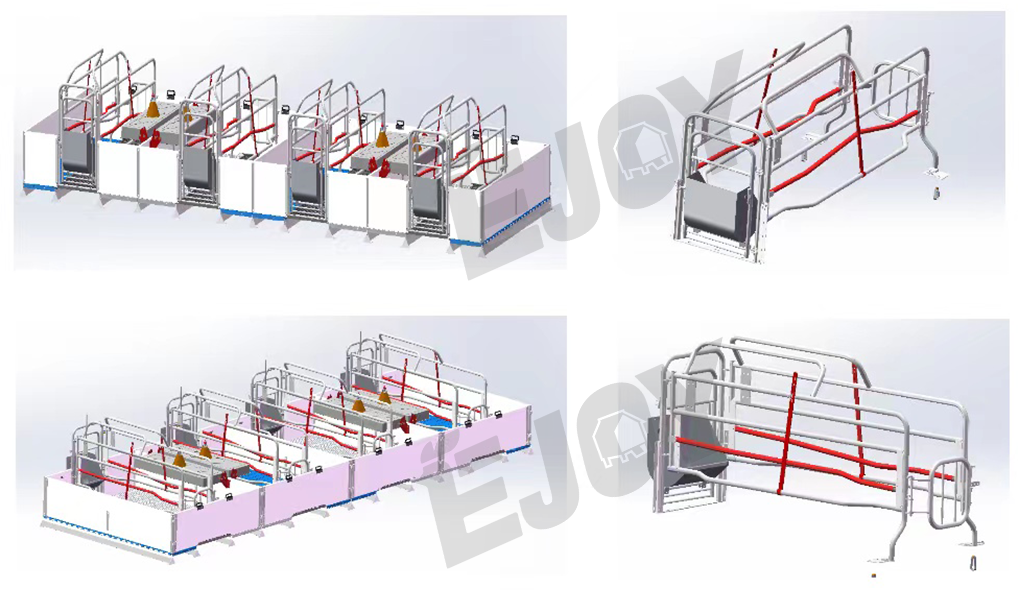

This farrowing crate efficiently keep the piglets away from the sow ,reducing crushing death.There are two choices:stainless steel farrowing crate and hot dip galvanized farrowing crate.Size is customerized.



  • Added: 2021-08-23
  • Views: 1668
Make an inquiry
  • Parameter
  • Features
  • Advantage
  • Detailed introduction

Parameter

Dimension: 1.8*2.4m/3.6*2.4m(adjustable)

●Fence: PVC material (30mm thickness,500mm height)/Steel material

●Stall frame: φ32×2.5mm round hot-dip galvanized tube/stainess steel tube

●Floor: cast iron floor for sow and plastic floor for piglet

●Feed trough: 304 stainless steel sow trough, 304 stainless steel piglet trough

●Fittings: stainless steel standard

●Heating: fiberglass insulation cover

●Support: triangular reinforced; fiberglass beam L=2.4m, H=0.12m engineering plastic material

●Anticorrosion treatment: overall hot galvanized, the thickness of galvanized no less than 80μm

●Both sides of the crate are adjustable



Features

●The position of the sows can be adjusted according to the need,freeing the sows from oppression in confined stalls,ensuring the sow's smooth delivery;The back door can open entirely,for the sows to enter and live

●Available sizes: 2.4mx1.8m, 2.4mx1.7m and etc, the stall width can be adjusted by the sow's size and parity, avoiding the sow pressing on piglets

Free walking lane at the back of the farrowing stalls,for the piglets' movement

Feces cleaning openings on perforated floors in the farrowing stalls, easy for cleaning

Unique design makes the PVC panel easier to assemble, clean and sterilize

The entire stall is hot-dip galvanized; the galvanization standard is above the national standard, for a longer service life

●Thermal casing for piglets: fiber-glass, set up in the middle of stall, avoiding the nipples from overheating, and the sow biting on the casing, temperature adjustable, avoiding burning the piglets



Advantage

Flooring:full slatted floors,nodular cast iron slatted floors are used in the position of the sow and plastic floors are used in the piglets,which lowers the temperature of the sow and avoids piglets from diarrhea.Feces outlet are designed in the floor at the back of sows,convenient for feces cleaning;each slat of floor is arched to avoid waste accumulation,maintaining the cleaness of the bedding

●Feeding trough:304 stainless trough for sows,rotable and easy for the cleaning of feeding troughs;single side trough for piglets,to the benefit of safe feeding

Drinking bowl: bowl shaped drinking device, duckbilled stainless steel drinking bowl for the piglets.

Efficiently keep the piglets away from the sow to reduce crushing death

Hot-dip galvanized steel provide excellent durability and anticorrosion
