Parameter
Broiler Chicken Cage with Semi-automatic Harvesting
Type | 18A9LRC-Z3240/4320 |
Cell size（mm) | 1206×1620 |
Unit heigt（mm) | 775 |
Tier | 3/4 |
Birds Qty per cell（pcs） | 40 (2.5kg) |
Nipple drinker per line（pcs) | 6 (2 water line) |
Feeding pan（pcs） | 1 |
Width（mm) | 1620 |
Length（mm) | 1206 |
Single cage height（mm) | 494 |
Cell height（mm) | 190 |
Living area per bid (c㎡/pcs） | 500 |
NOTE:
cell size: L1206mm ×W1620mm (If remove the partation wire,the size is L 2412 × W 1620)

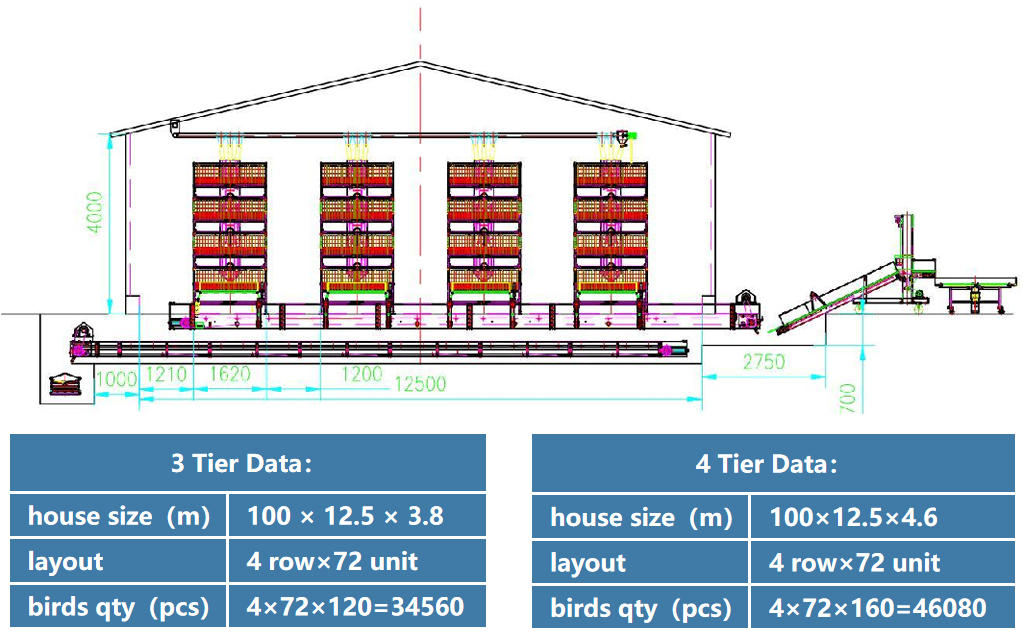

House Data

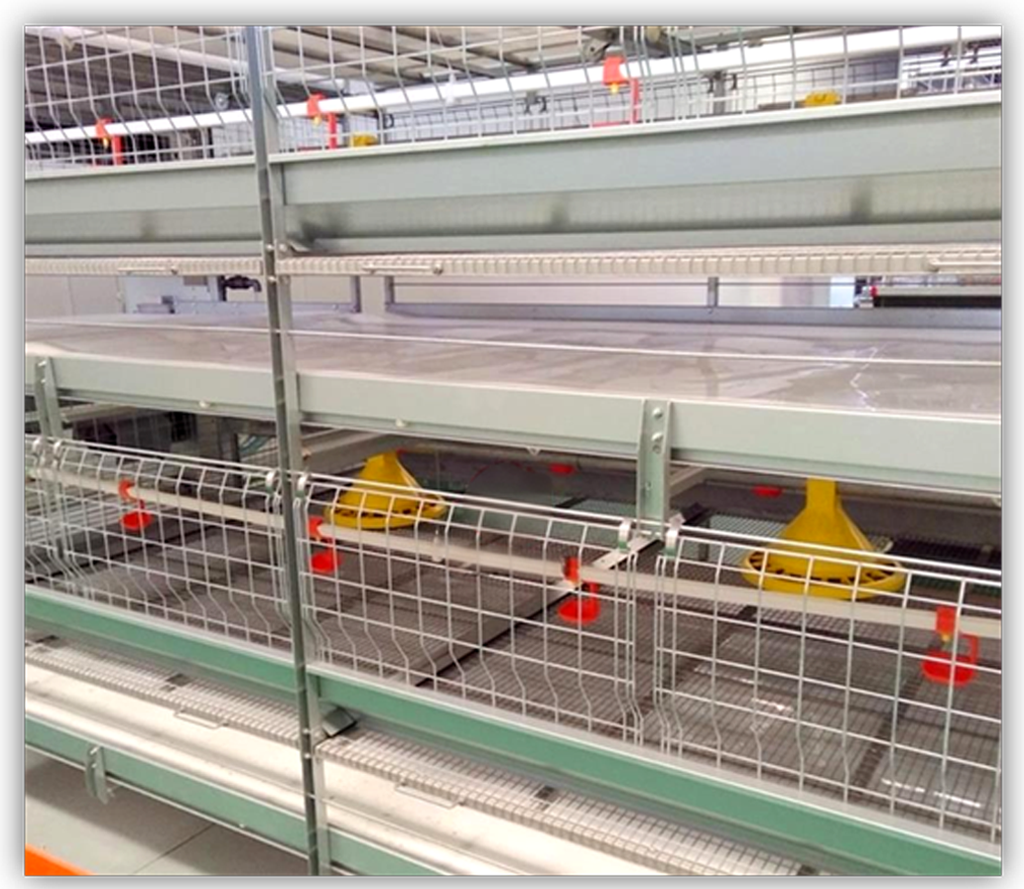

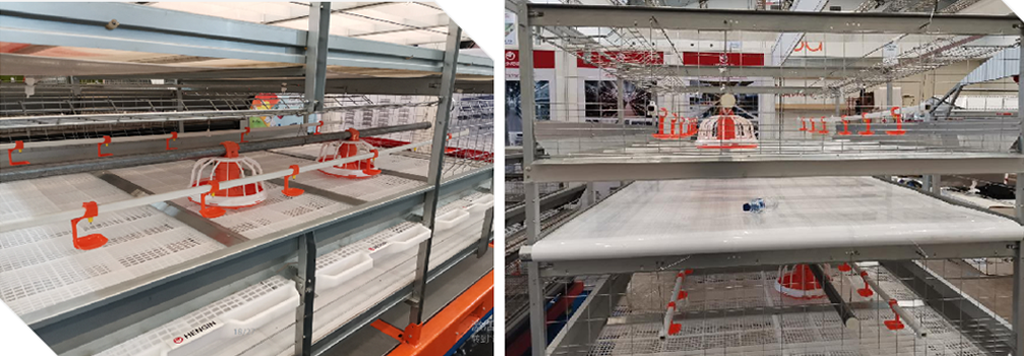

Feeding line & water line
※ Each unit cage is L2412mm*W1620mm
※ Each unit have 2 water lines , eahc water line is 6 pcs nipple drinkers , total is 12 pcs nipple drinkers.
※ Each cell is 1 feeding line with 2 pcs feeding pan.

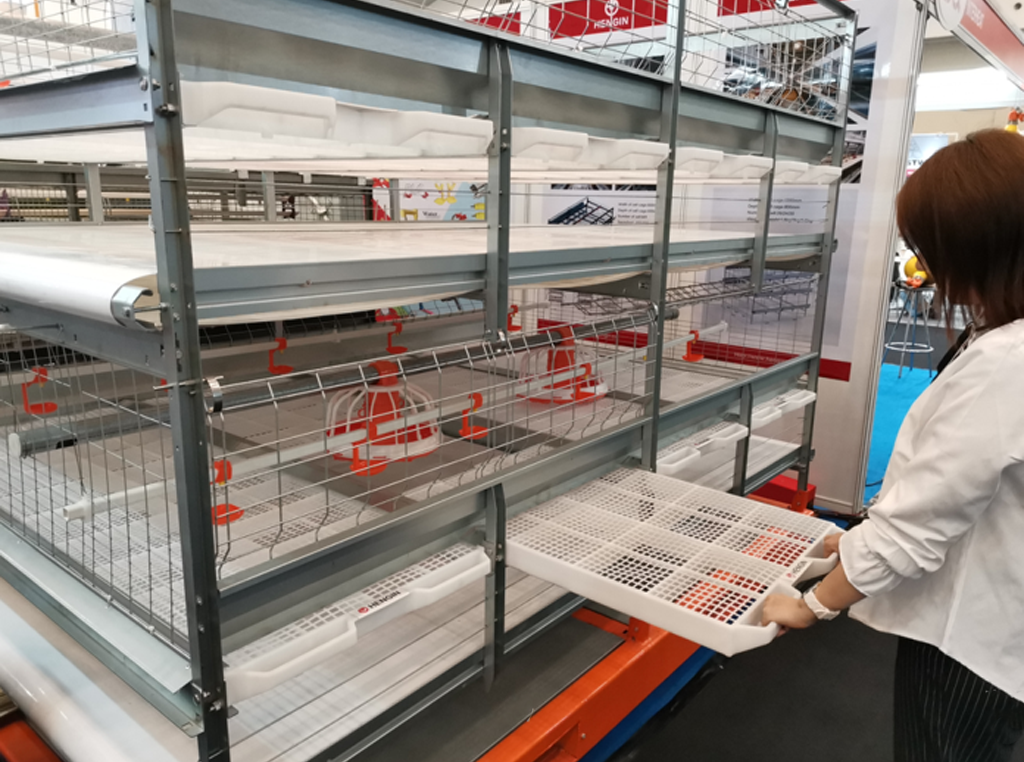

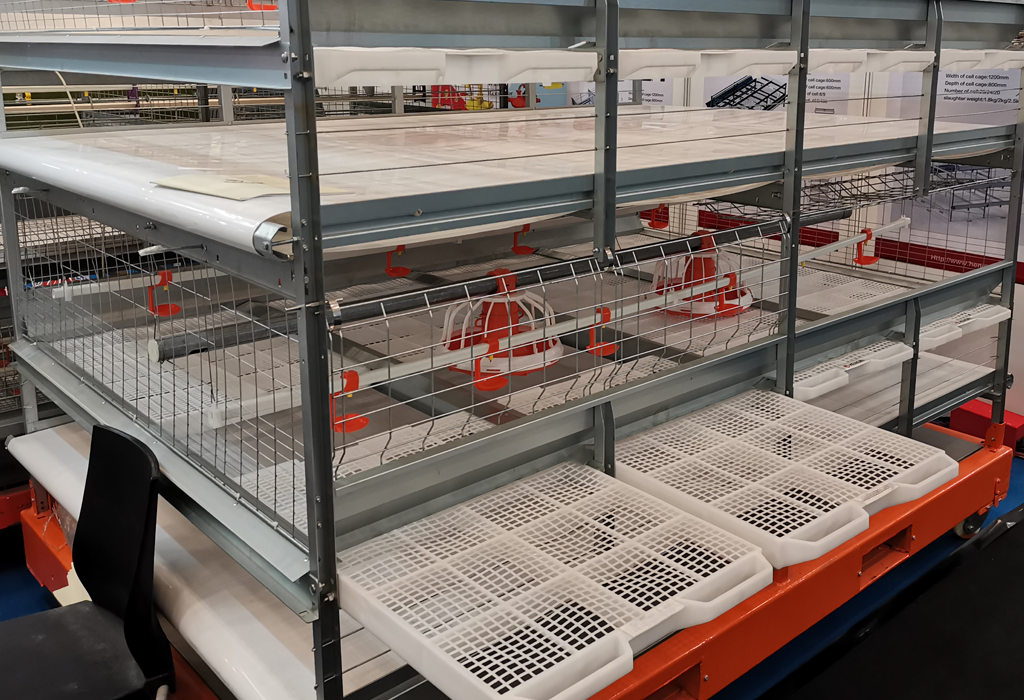

Plastic floor

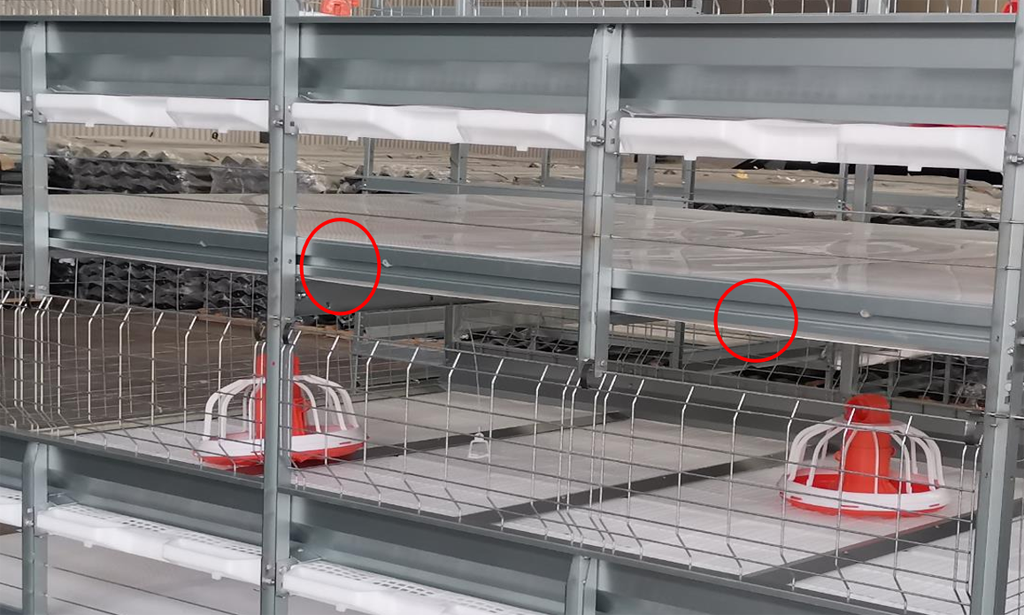

※ Two guide rails are designed under the bottom net to prevent the deformation of the bottom net
※ Raw PPmaterial ,more solid and durable
※ Plastic floor is devided into 2 pcs,width is 0.6m,depth is 0.8m,convenient to pull and push
※ Plastic floor size : 15mm*10mm
Cage Frame
Galvanized sheet ,the material strength can reach more than 450MPa,and galvanized coat content reach 275 g/㎡.
C shape leg is formed of hot galvanized sheet ,it is firm and easy to clean.
The distance between adjacent legs is 1206mm,so that it make frame firm and strong.

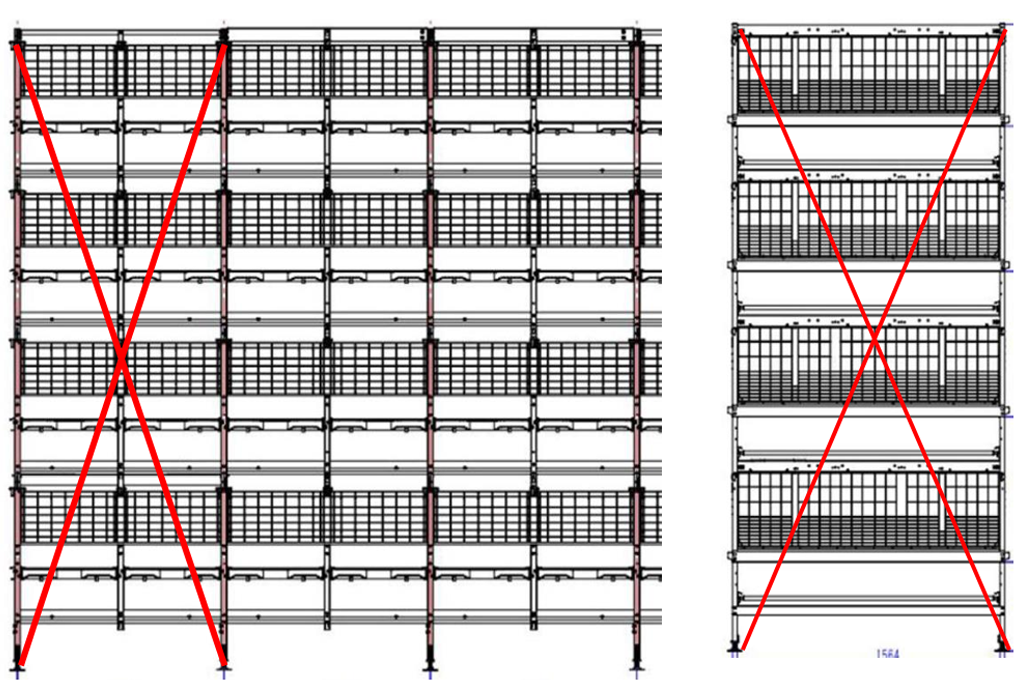

Because of accurate processing, diagonal tolerance is within 1.5mm

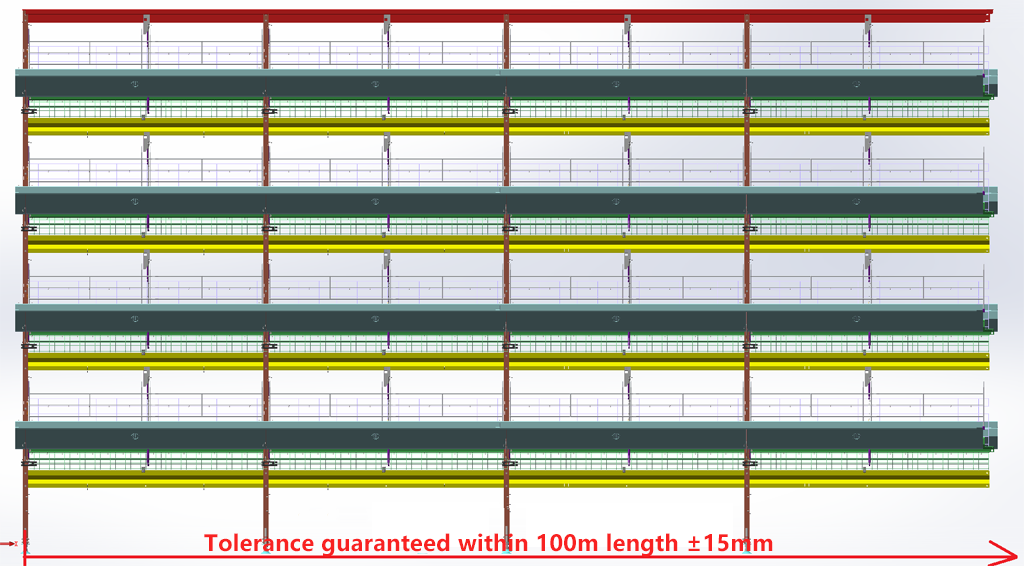

Accurate assembly make a error no more than 1.5cm in 100m length.
Cage mesh adopt hot galvanized wire, the advantage is high intensity, good elasticity , antirust effect, also can improve the cage surface smooth, to avoid the hurt of chicken scratch.

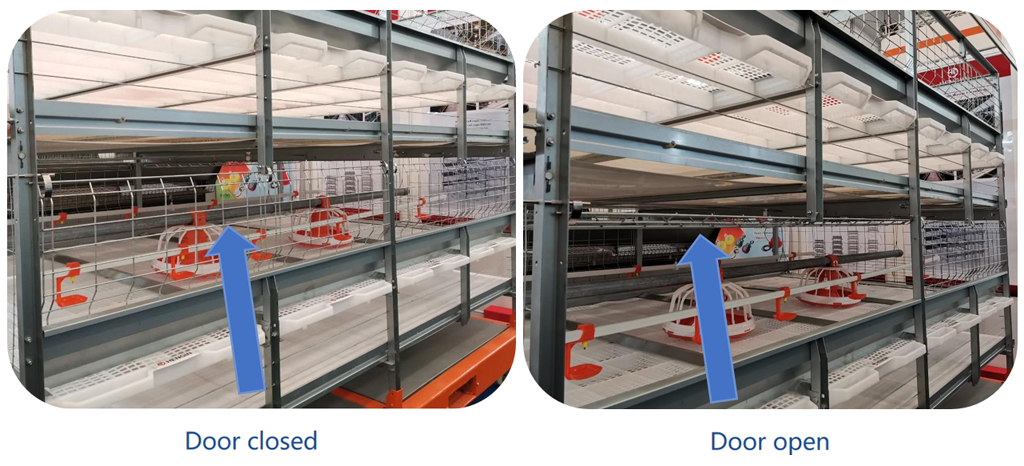

Cage Door
Push-in door ,convenient to epidemic prevention and management
Manure Belt

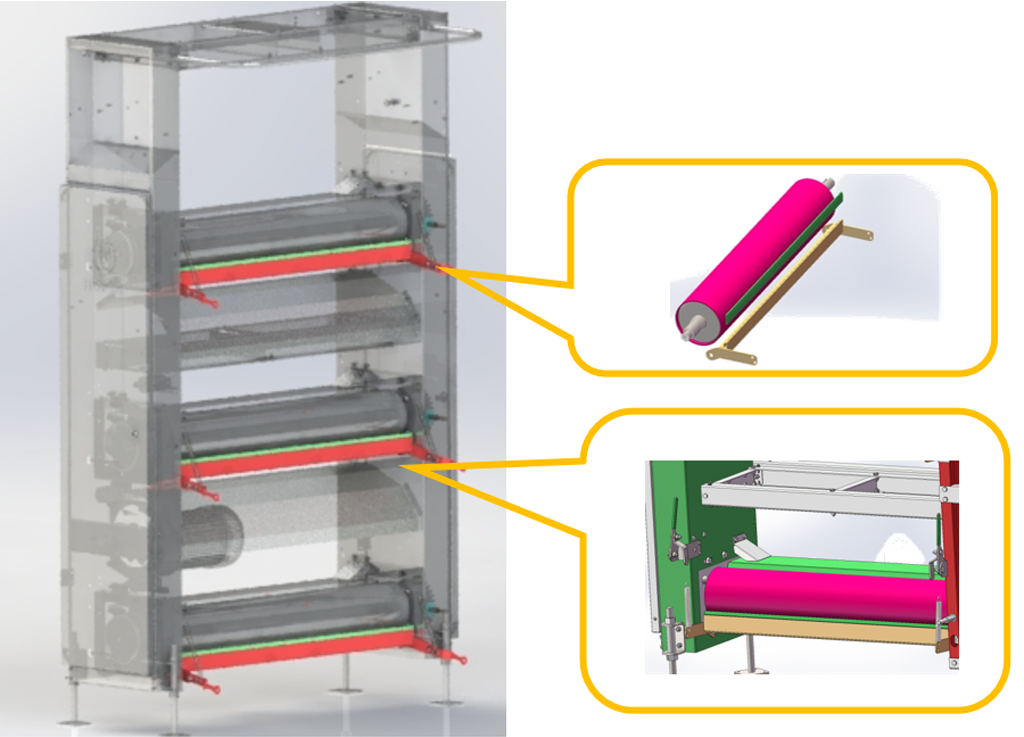

The roller of manure belt adopted rolling structure,to reduce the running resistance when birds-harvesting
Manure Removing
The manure is removed out of house to a truck through cross conveyor and sloping conveyor
※ Easy to remove the PVC scraper.
※ To clean easily.
※ Stainless steel frame of scraper make scraper to touch belt tightly and make belt clean.
※ Electrical cart can be chosen to use in the aisle
