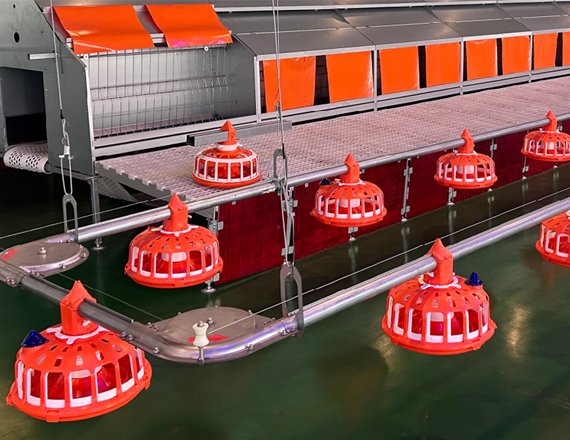

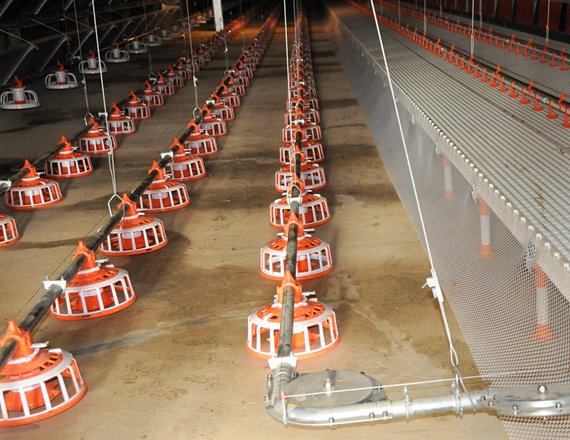

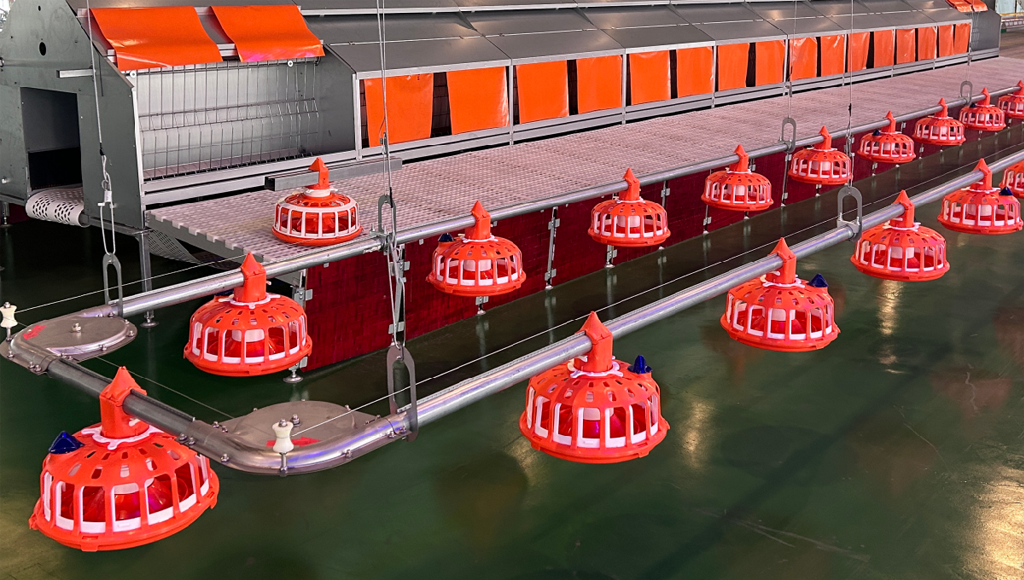

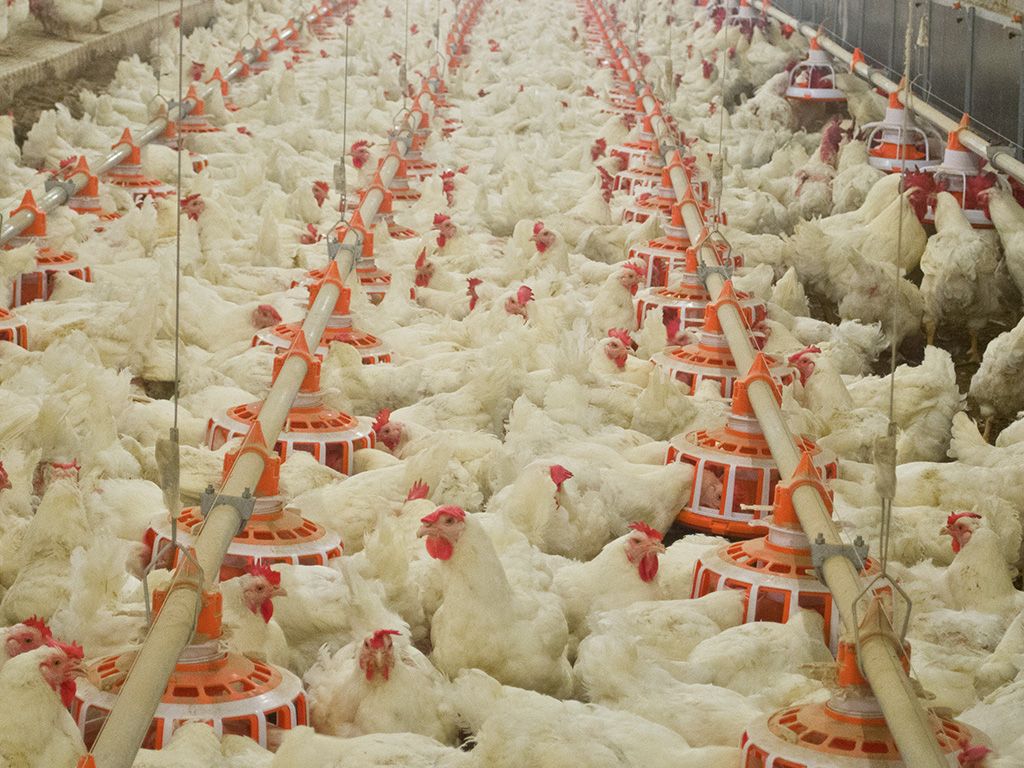

Ejoy breeder pan feeding system

通栏图片

Products

Chicken Floor Breeding System

Broiler breeder pan feeding system
Broiler breeder pan feeding system
Broiler breeder pan feeding system
Broiler breeder pan feeding system
Broiler breeder pan feeding system
Broiler breeder pan feeding system

Broiler breeder pan feeding system

  • Added: 2021-08-24
  • Views: 1479
Make an inquiry
  • Parameter
  • Features
  • Advantage
  • Detailed introduction

Parameter

Drive system

Gear Motor :  1.1kw or 1.5kw

Feed delivery speed  V = 30m/min or 40m/min

Drive system shell : stainless steel

Driving (driven) wheel : reinforced nylon

Designed with safety pin

With chain tighten device and emergency stop switch



Delivery system

Feed pipe : 4 hole /3 m pipe

Diameter of feed pipe : φ45mm

Material of feed pipe : hot galvanized steel, galvanizing thickness 250g/m2

Pipe thickness : 1.2 mm

Feed delivery capacity : 1.3T/h

Feed pipe could reserve 400-500g feed per meter

Feed storage of feed pipe 400-500g/m

Features

● The drive motor is connected to the feed sensor, which gives back signal to start and stop the motor automatically, It could meet breeder feeding requirement during every stage of growing period.

● All the feed pan filled simultaneous, which make the breeder could feed with same amount at the same time. Eliminate hungry hyperirritability , ensure uniform growth,enhance egg production rate.

● Feed is delivered by disc-chain in the pipe,which greatly reduce feed damage.Closed feed delivery eliminate pollution and noise,  avoid abrasion of feed pipe.

● Disc soft link ensure cycle supply of feed, easy for installation.

● Once suspension installation, lifelong use.Feeding density is 30% more than chain feeding.



Main features

● 4 feed pan per 3 meter, that is 750mm interval between 2 feed pans

● Feed pan diameter 360mm

● Material: PP

● Feed capacity : 12.5 bird per pan

● 16 grills, width adjustable from 40-52mm, 11 levels. Suitable for different type and day old of breeder.

● Feed hole height-adjustable from 70mm, 80mm, 90mm 3 levels. When grill width is 52mm and feed hole height is 90 mm, the pullet could goes in and come out freely.

● When feed hole height is 70mm, the feed will not overflow.

● Feed pan capacity: 7 levels, 200- 630g feed per pan, and could meet breeder feeding requirement at different stage of growth.

● With slide shutter-off, could shut any feed pan freely.

● Pan bottom dish could be disassembled easily for washing. Hanging with grill, there is no need to disassemble pan completely when washing, easy and clean to re-assemble.

● There are 3 levels of slide shutter-off, satisfy the need of different stage of breeder growth.

● Grills width adjustable from 40-52mm, 11 levels Feed hole height-adjustable from 70mm, 80mm, 90mm 3 levels



Male Feed pan

●Diameter : 360mm

●Material : PP (polypropylene)

●Feeding capacity:6 ~ 8male birds/pan

●9-grill design : enough eating space with more cock

●Clamp prevents the pan from rotating and keep the feed in the middle of the pan.

●Manual adjuster on the pan head can regulate the feed level of cylinder to the best position. Save feed to the great extent.

Advantage

● High strength disc-chain

● long lasting and anti-fracture

● Disc is durable and resist breakage after special processing

● Breaking force : 1.6tons

● Non-feed-remaining corner

● Corner and corner shell material- hot galvanized sheet or stainless steel, the idler material- cast iron
