Parameter

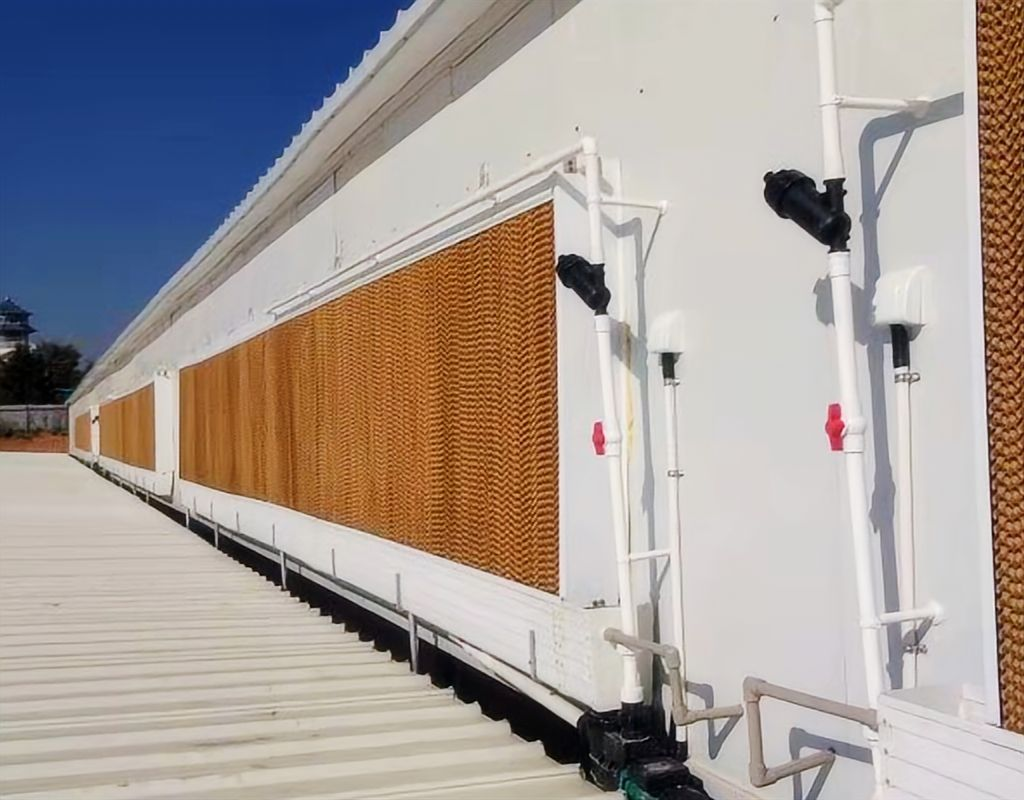

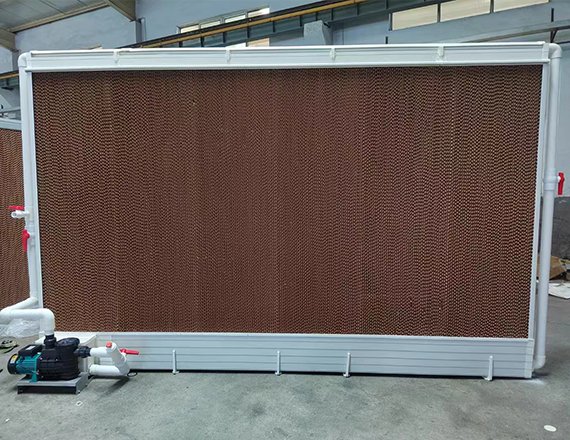

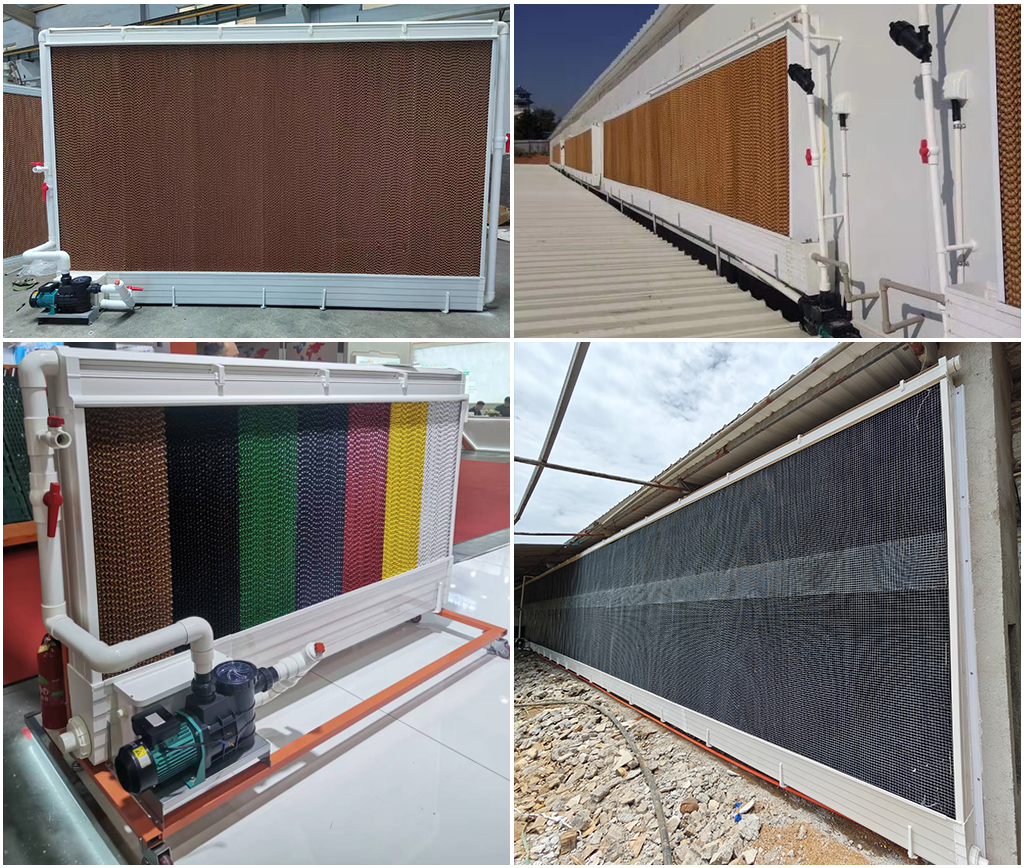

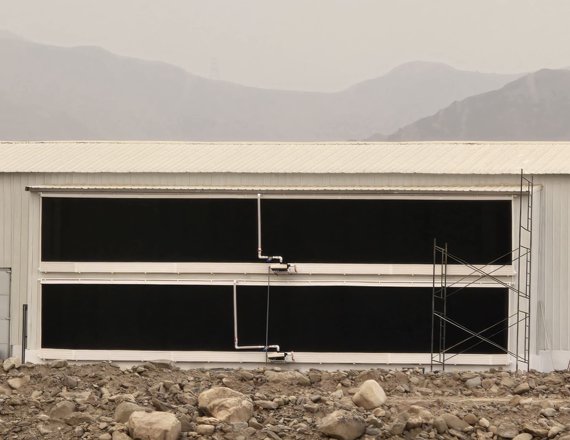

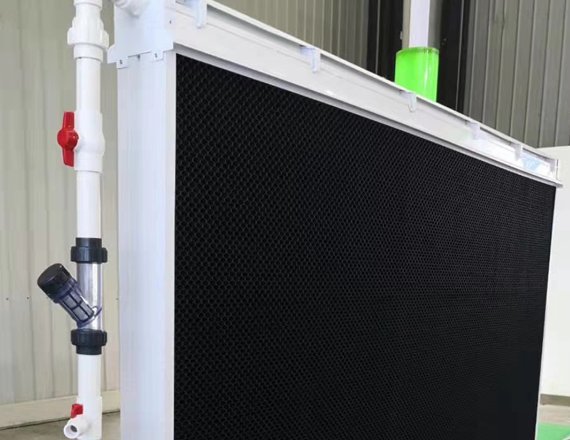

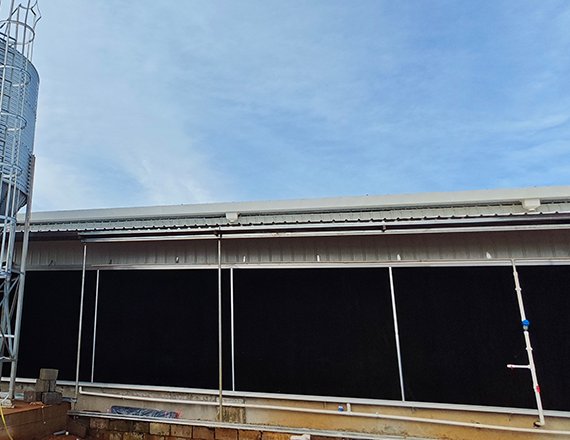

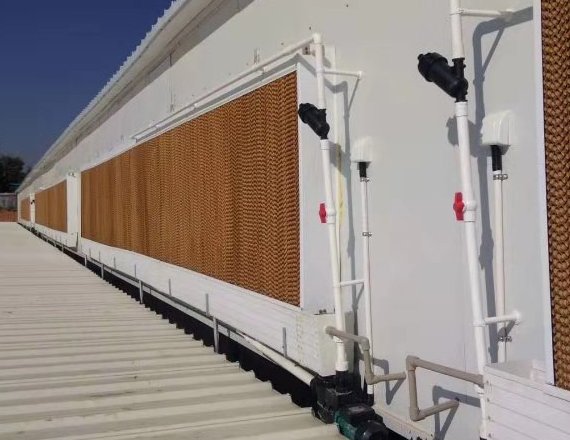

Poultry Farm PVC Frame Cooling Pad System
The Cooling Pad works on the natural physical principle that water evaporates and absorbs heat. Water flows downward by gravity, forming a film on the corrugated surface of the cooling pad. When fast-moving air passes through the pad, the water film absorbs heat from the air and evaporates, reducing the temperature of the air that passes through the pad and achieving a cooling effect.
Corrosion-Resistant PVC Frame for Humid Poultry Houses: Built to be more durable in damp environments.
Cooling Pad Features
Name | Length(mm) | Height(mm) | Width(mm) |
7090 cooling pads | 1500/1800/2000mm | 600/300 | 100/150/200/300 |
7060 cooling pads | 1500/1800/2000mm | 600/300 | 100/150/200/300 |
1. Corrugated paper is specially treated, with high structural strength, corrosion resistance, mildew resistance and long service life
2. Good permeability and water absorption, no water drift, can ensure that water evenly penetrates the entire cooling pad wall
3. Specific stereoscopic structure provides the largest evaporation surface area for the heat exchange between water and air, evaporation efficiency is high.
4. Safety, energy saving, environmental protection, economical and applicable
5. Strict production as per standard, width of 600mm cooling pad involves 86 sheets

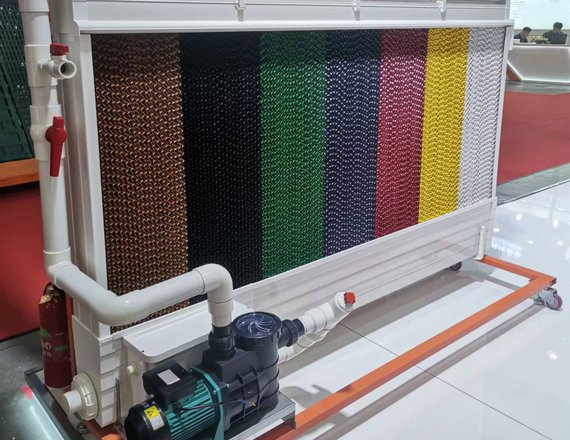

6. Cooling Pad color can be customized
Click here to learn how to clean your cooling pad.
Features

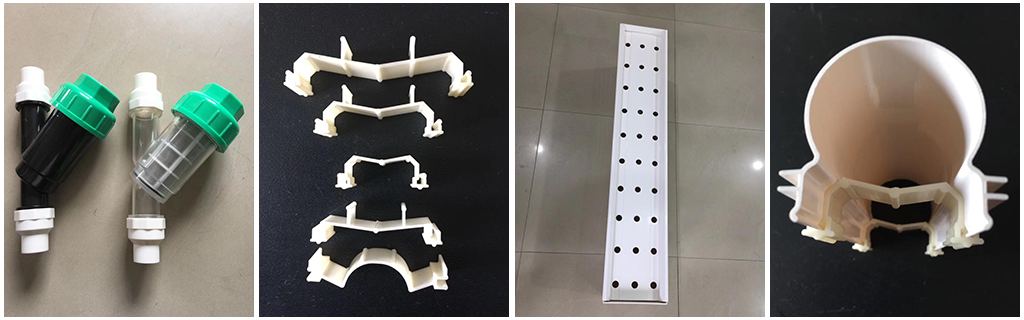

PVC Frame Advantages:

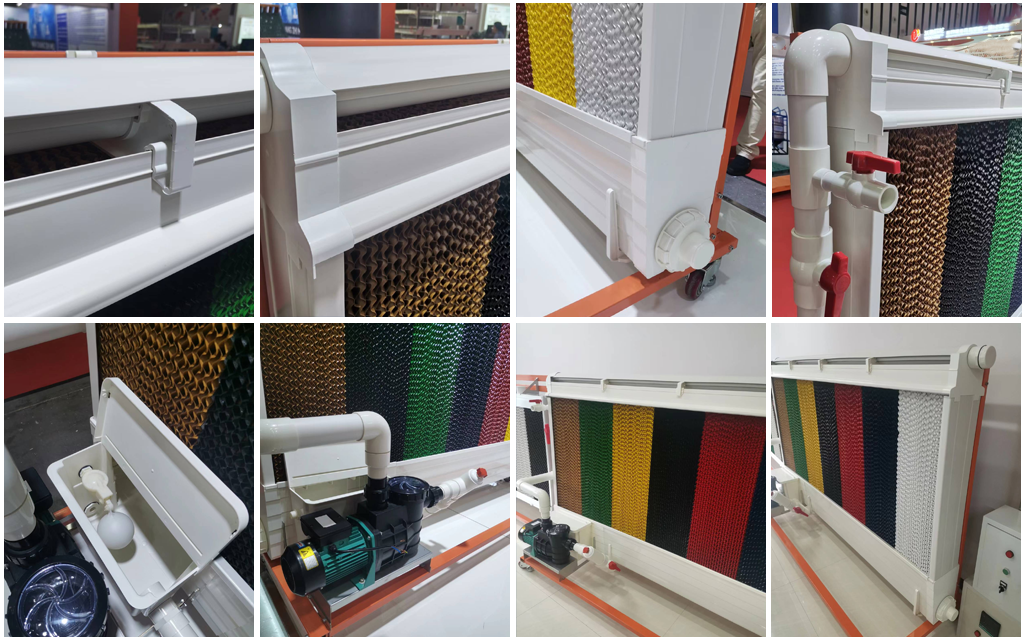

1. New modular design, easy to install and remove, convenient to clean or replace the cooling pad paper.
2. Using PVC material, anti-aging, resistant to corrosion and rust.
3. No need to add external water tank as the bottom watergutter contains the entire water requirment of the pad climate system.

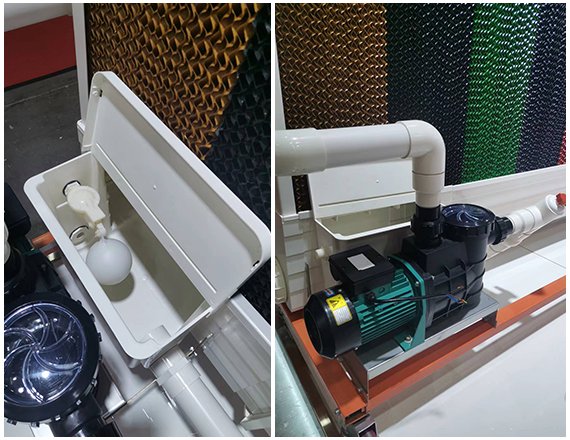

4. The float valve system can fill water automatically when the water level is low.
5. Matching use with the water-distribution pipe, the special designed deflector can make the water soaking into the cooling pad evenly.
6. The cooling pad support can realize the water circulation perfectly and prevent the rodents from entering the watergutter.
