ejoy manual egg nest

通栏图片

Products

Chicken Floor Breeding System

Manual egg nest
Manual egg nest
Manual egg nest
Manual egg nest
Manual egg nest
Manual egg nest
Manual egg nest
Manual egg nest
Manual egg nest
Manual egg nest
Manual egg nest
Manual egg nest

Manual egg nest

  • Added: 2021-09-06
  • Views: 1381
Make an inquiry
  • Parameter
  • Features
  • Detailed introduction

Parameter

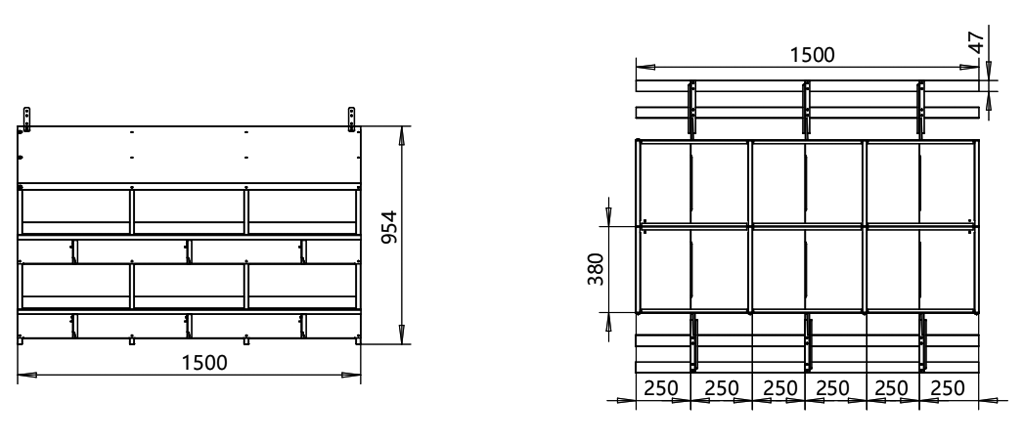

Nest size: 1506x760x970mm (LxWxH)

Capacity: 95-100birds/set

Hole size: 375x255mm (WidthxDeep)

Galvanized sheet thickness 0.5mm

PVC mat size: 295x365mm

Galvanized angle iron leg

Features

●275g/㎡, 0.6mm thick high-quality hot-dip galvanized sheet, the wooden legs are made of 1.5mm hot-dip galvanized sheet, and the bottom bracket is made of modified PP plastic.

●The pedal is a double-layer design, high-quality wood production, smooth and straight, corrosion-resistant and thorn-free (1500*45*20mm)

●Egg nest adopts the installation form with 4 legs placed horizontally on the ground, and all the movable positions are made of stainless steel non-slip screws.

●It can be equipped with soft artificial rubber straw mats according to the customer's choice, which can effectively exert the production characteristics of the egg nest and reduce the number of dirty and broken eggs; the anti-perching rack design can effectively keep the surface of the egg-laying box clean.
