● The nipple shell is made of high-quality engineering plastics, and the valve rod inside is made of high-quality stainless steel. All these features make it anti-corrosion, anti-rust, and more than ten year’s longevity.

●Double-decked seal structure can effectively avoid wasting water and the resulting impact on the environment humidity.

●Stem can rotate freely at 360 degree to meet bird water demands of different periods.

● Front part of the drinking lines.


  • Added: 2021-08-24
  • Views: 1563
Make an inquiry
  • Features
  • Detailed introduction

Features

Nipple drinking system

chicken farm drinking system

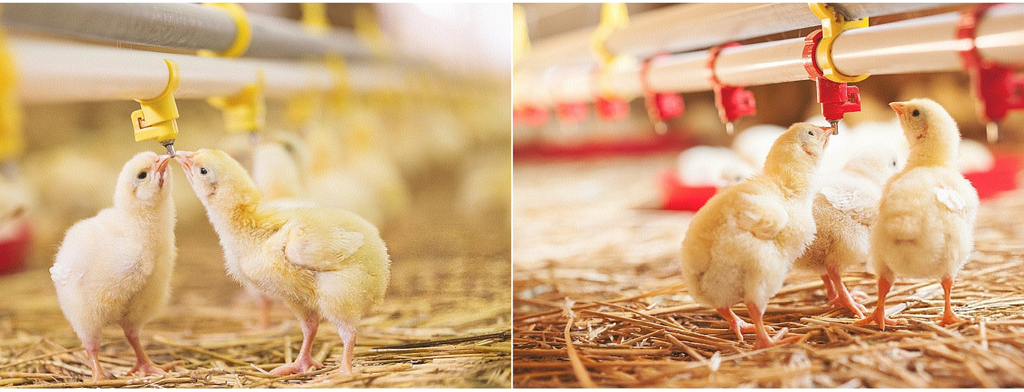

Supply clean and fresh water for bird

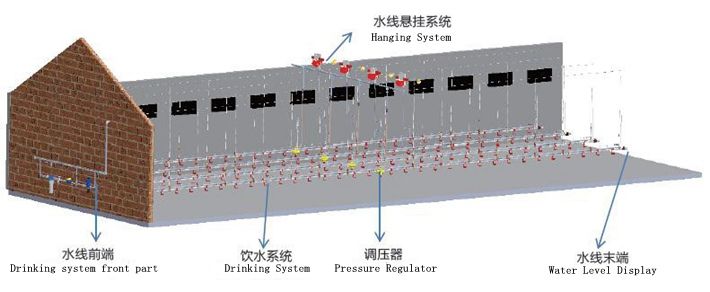

Nipple drinking system is composed of

pressure regulator, nipple drinking lines, hanging system, anti-roost accessories

pressure regulator  nipple drinker

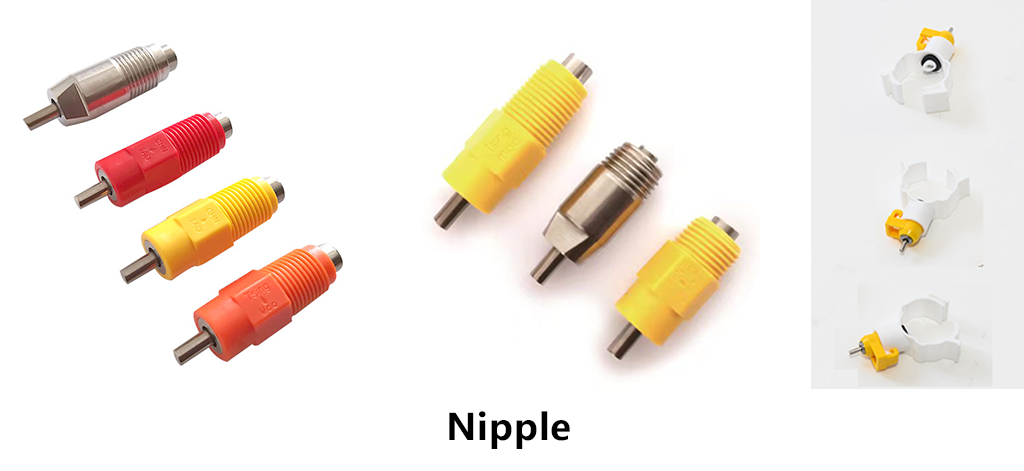

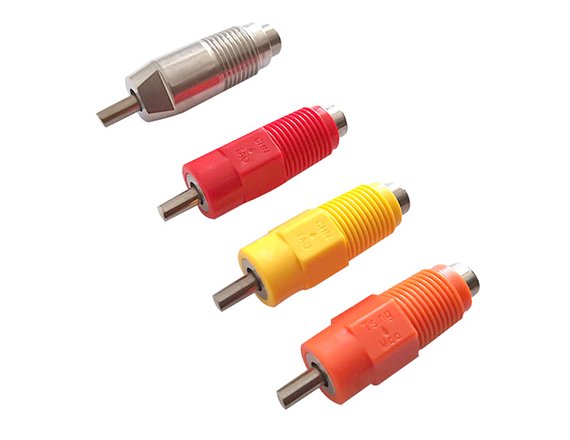

Features of nipple

The nipple shell is made of high-quality engineering plastics, and the valve rod inside is made of high-quality stainless steel. All these features make it anti-corrosion, anti-rust, and more than ten years longevity.

Double-decked seal structure can effectively avoid wasting water and the resulting impact on the environment humidity.

Stem can rotate freely at 360 degree to meet bird water demands of different periods.


Feeding capacity

broile:8-12 birds/nipple

birds in cage:12 birds/nipple

turkey:20 birds/nipple

duck:10 birds/nipple

Breeder 10 birds/nipple

chicken drinking water 1  water cup

Fast-connector

Quick and easy installation, more reliable than the usual connecting method, without cracking and leakage.

 Double-water inlet tube and flushing

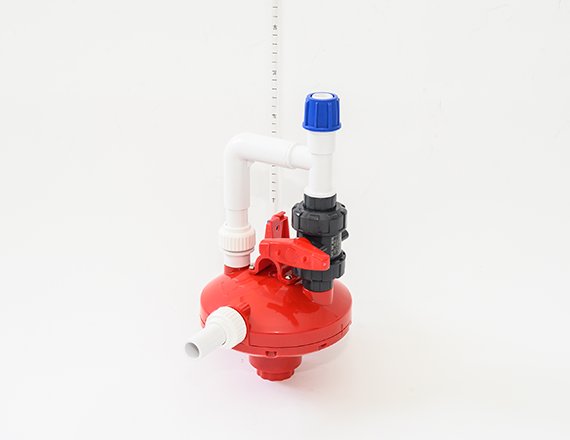

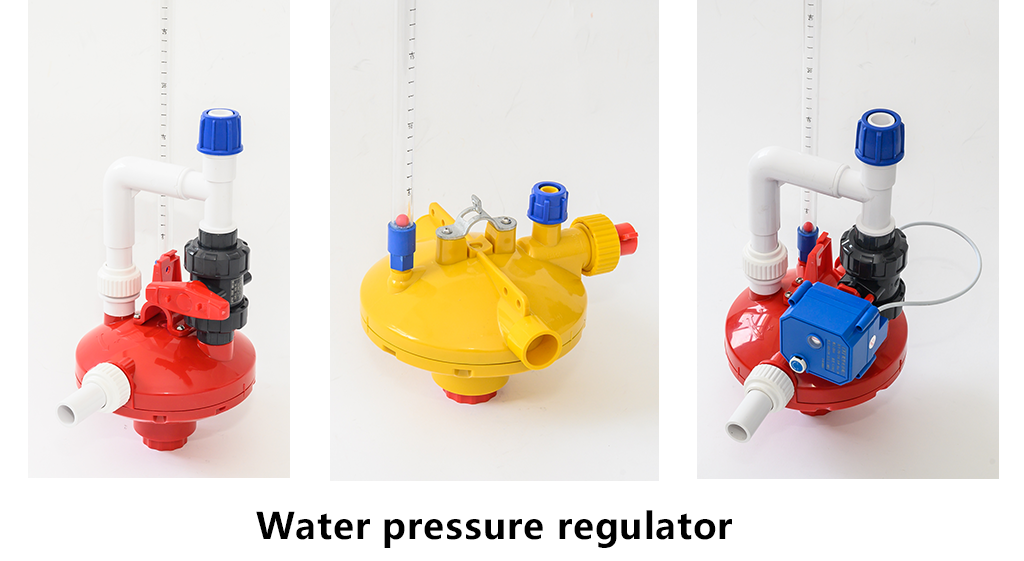

pressure regulator with larger water flow

Massive recoil tuner, stable tuning, high dexterity, sufficient and even distributed liquid, neat waterline reflush, save water and time

Standard double ball valve, easy to change

 Hanging system

Proper height is very important for healthy growth of bird.(improper height will result in deformation of birds skeleton and low water utilization.)

The height and level of drinking lines can be regulated freely by winch hanging pieces together with the adjusting rope.

Water level indicator  Water level indicator 2

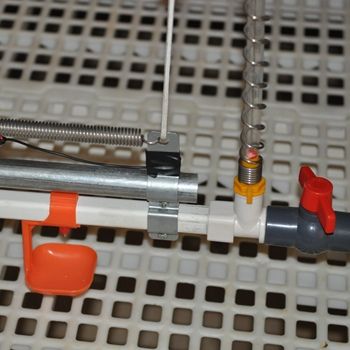

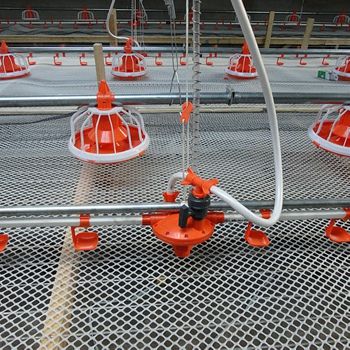

Water level indicator

The indicating tube is made from high-intensity and anti-resistance plastics, which can observe the water level more clearly. This is convenient to takedown and clean.

front part  Medical pump

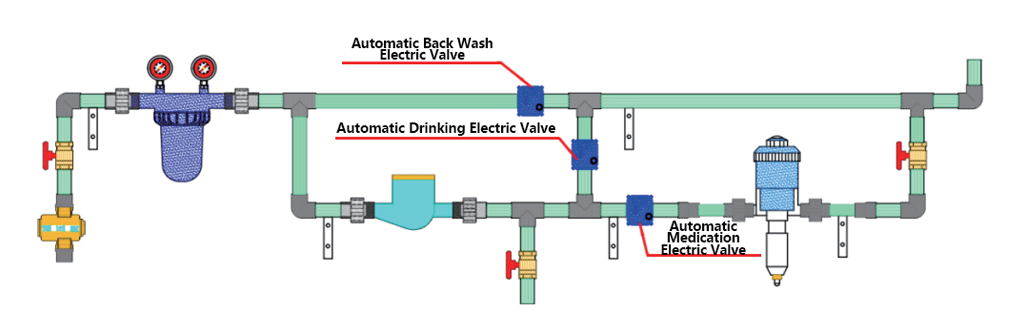

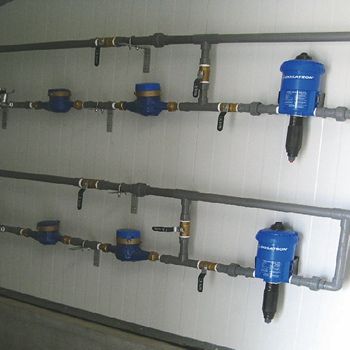

Front part of the drinking lines

Quality of the water is of high importance to most drinking system. Special design of our front part not only can supply water and dose medicine, but also wash sediment and dirt effectively  with its large diameter clean-tube. All these can protect the system and reduce the workload.

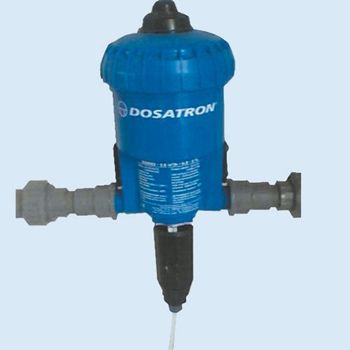

Medical pump

It can dose the water solubility medicine automatically to prevent the disease.

By using water pressure as power source instead of electricity, it is economical and reliable.

It can regulate precisely the amount of additive and water ratio.

Easy and convenient operation , anti-rust and anti-corrosion.



Technical data

Flow rate10 L / h 2.5 m3/h

Working pressure 0.3bar6bar

Dosing rate0.02L / h 50 L/ h

Maximum working temperature 40

Adjustment ratio0.2% to 2%1500150

Connecting sizeexternal thread G3/4

Water flow: 0.45L every other ‘kata’click sound
