Qingdao Ejoy Farming Machinery Co.,ltd.

Hot Galvanized Material Feed Silo

通栏图片

Products

Poultry Farming Accessory

Hot Galvanized Material 3-33 Ton Feed Silo
Hot Galvanized Material 3-33 Ton Feed Silo
Hot Galvanized Material 3-33 Ton Feed Silo
Hot Galvanized Material 3-33 Ton Feed Silo
Hot Galvanized Material 3-33 Ton Feed Silo
Hot Galvanized Material 3-33 Ton Feed Silo

Hot Galvanized Material 3-33 Ton Feed Silo

Ejoy Silo
1.Different diameters wallrings,  volumes for choose.
2.275g/m2 hot galvanized steel sheet,Thickness from 1mm to 1.5mm.
3.view window for convenience of feed observation.
4.Ladder and safety cage included in all  models.
5.Encapsulated external bolts to prevent corrosion.
6.5 year warranty against perforation by corrosion.

  • Added: 2023-10-16
  • Views: 902
Make an inquiry
  • Parameter
  • Features
  • Advantage
  • Detailed introduction

Parameter

Silo material: 1) The plate is made of 275g/㎡ hot-dip galvanized sheet.

2) The coating thickness is measured with a coating thickness gauge and the salt spray test is conducted to test the anti-rust performance.

3) Only products that meet the standards can be used.

4) Standard parts are hot-dip galvanized and subjected to salt spray test to detect rust resistance.


Silo technology: Imported fully automatic CNC punching machines, corrugated plate forming, punching and other process line operations ensure accurate installation of each component and are sturdy and durable.


Features

Features:

1.Processing method: cold working of metal. So it will not damage the zinc on the surface.

2.Observation window is made of the same material as car headlights. It cannot be broken by a hammer and not turn yellow.

3.We design horizontal overlapping and cross fastening between the columns to ensure higher overall stability. It is better for silo weight

4.The sliding cover can load feed in any direction, and the cover will not break when loading.



Drop parts design:

1)The deformation port hopper is equipped with a observation window to facilitate observation of feed agglomeration;

2)The plug-in board is at an oblique angle, so there will be no material storage;

3)Equipped with a waterproof structure to prevent

rainwater from corroding the feed;

4)The silo is equipped with soft connections, making the  silo weight more accurate;

5)Material: Stainless steel 304


Advantage

Advantage:

1.Waterproof treatment, rainwater will not corrode the feed;

2.Two-way hopper, which can be opened and closed independently to discharge feed;

3.The valve opening is large, making it easy to open and inspect;

4.There is a waterproof rubber strip inside the valve

5.Section treatment: All material towers of our company anti-corrosion treatment has been carried out on the sections.

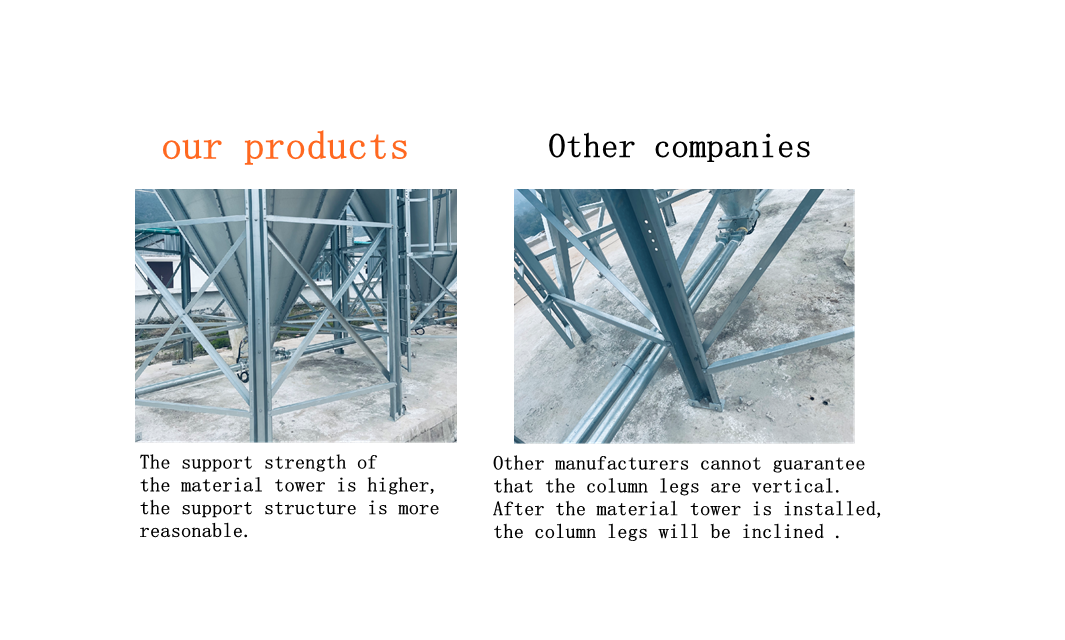

6.The support strength of material tower is higher, the support structure is more reasonable.

7.The upper and lower cone plates and coaming boards are overlapped, it will prevent feed hanging.
