Parameter
57 Inch Industrial ventilation Fan for Poultry/Pig House
Exhaust fan are widely used in poultry farm, industry and other busy or closed places for cooling, such as poultry house(animal husbandry, livestock breeding, cow/ chicken/ sheep house), factory workshop(textile, chemical, medicine, tea, vegetable storage) restaurant and supermarket.
This exhaust fan is divided into Plusfan 57 Inch (EC motor) Description and Fiberfan 57 Inch (EC motor) Description.
Plusfan 57 Inch (EC motor) Description
Technical Parameters
| Voltage | 380 V |
Phas | 3 |
| Frequency | 50 Hz |
Speed | 825 RPM |
| Power | 1500 W |
| Rated current | 2.8 A |
| Waterproofing grade | IP66 |
Blade Details
| Blades number | 6 |
| Blades material | PP |

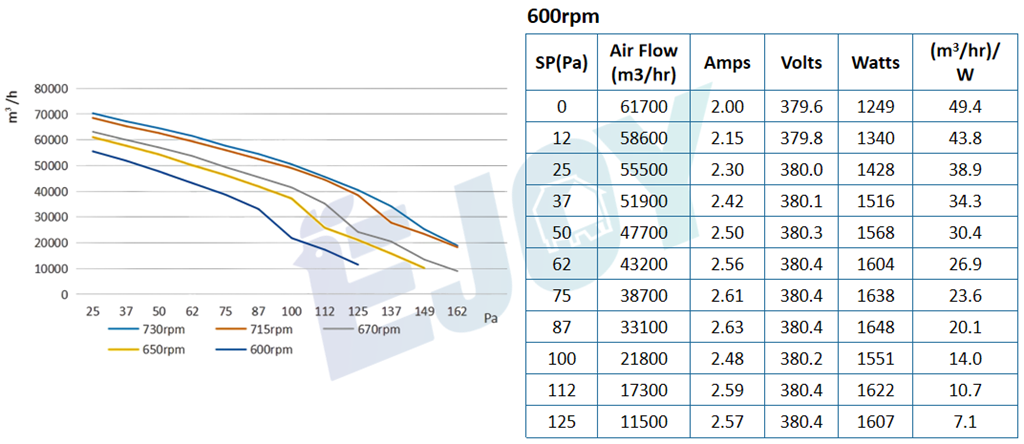

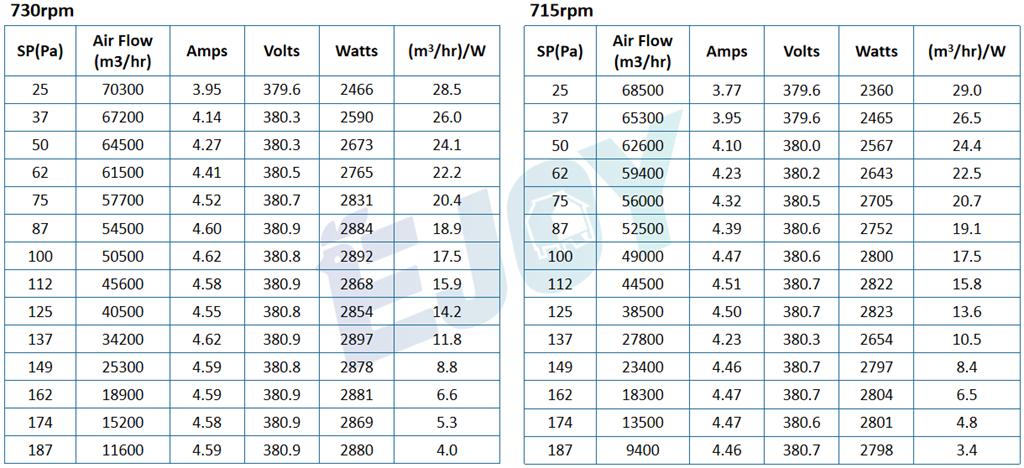

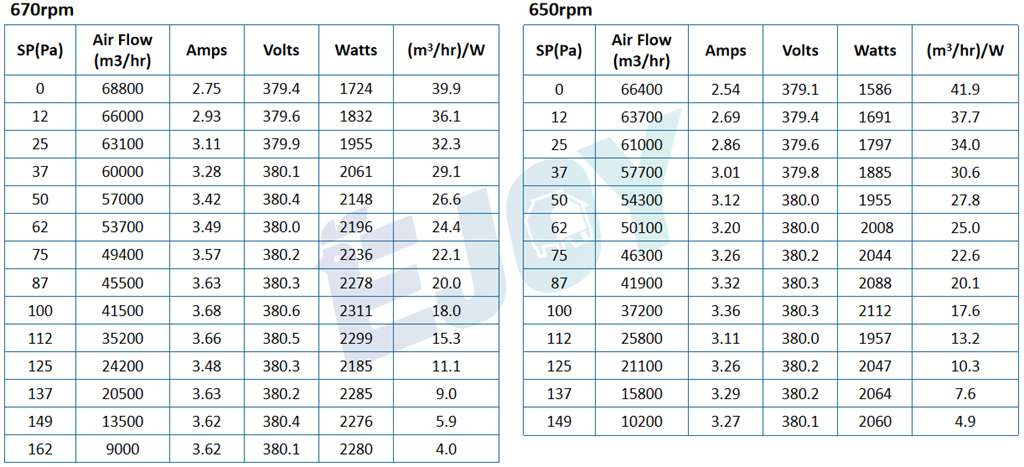

Related data
The blueprint of Plusfan 57 Inch (EC motor)

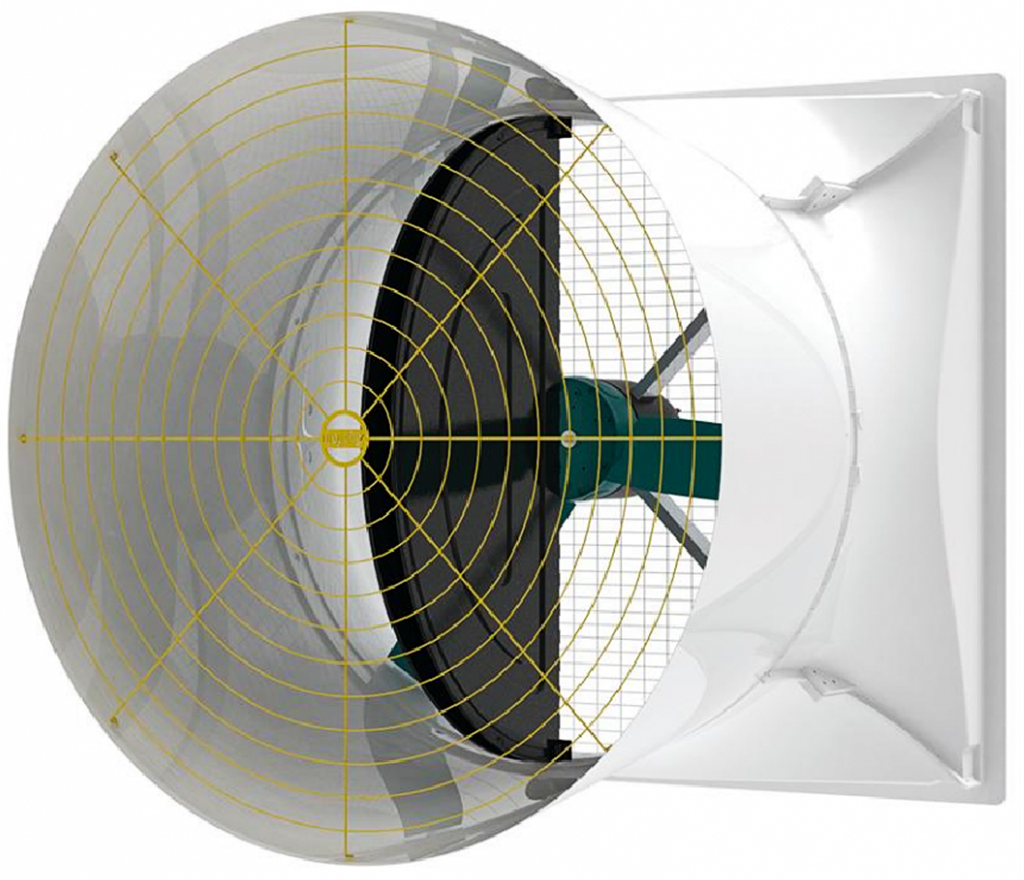

Fiberfan 57 Inch (EC motor) Description
Technical Parameters
| Voltage | 380 V |
| Phase | 3 |
| Frequency | 50 Hz |
| Speed | 725 RPM |
| Power | 2200 W |
| Rated current | 4.0 A |
| Waterproofing grade | IP66 |
Blade Details
Blades numbe | 3 |
| Blades material | PP |

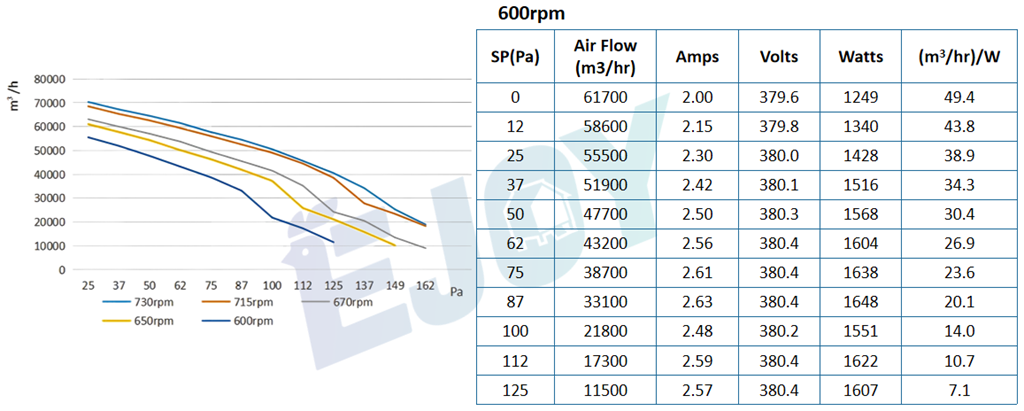

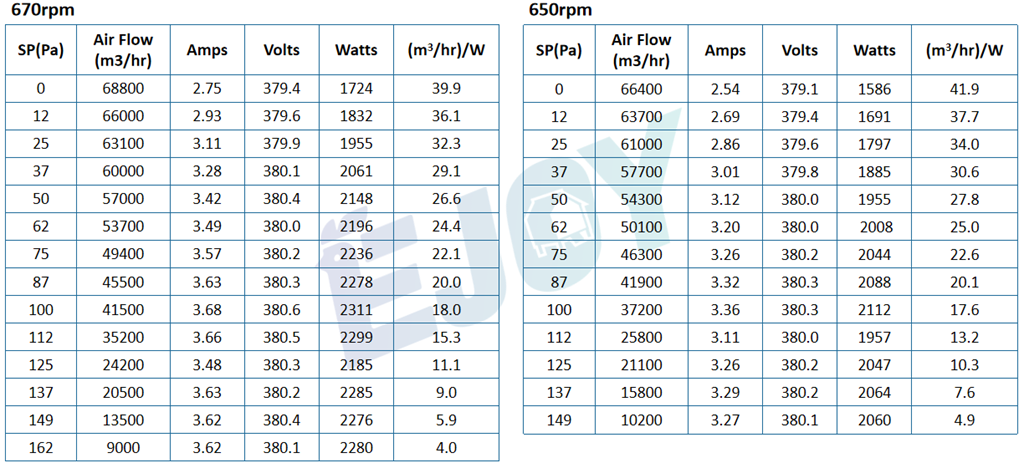

Related data

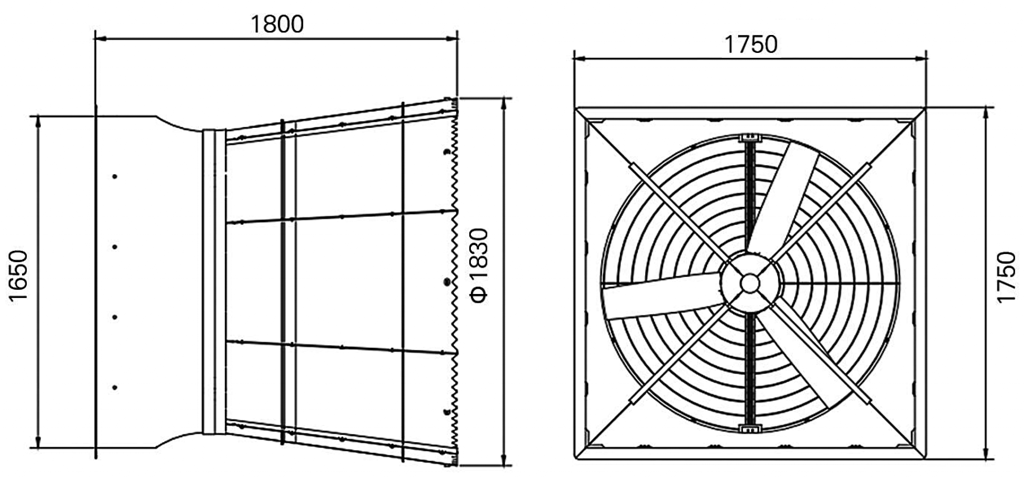

The blueprint of Fiberfan 57 Inch (EC motor)
Features

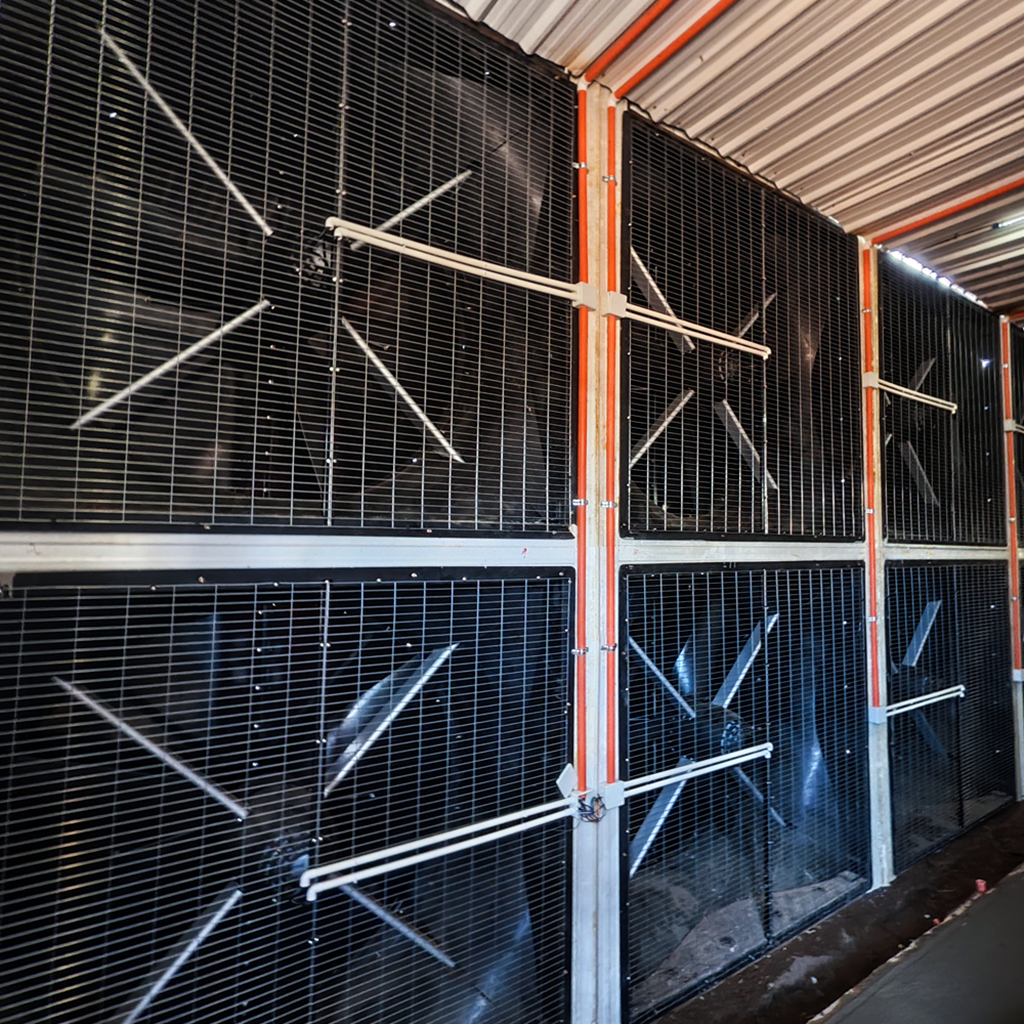

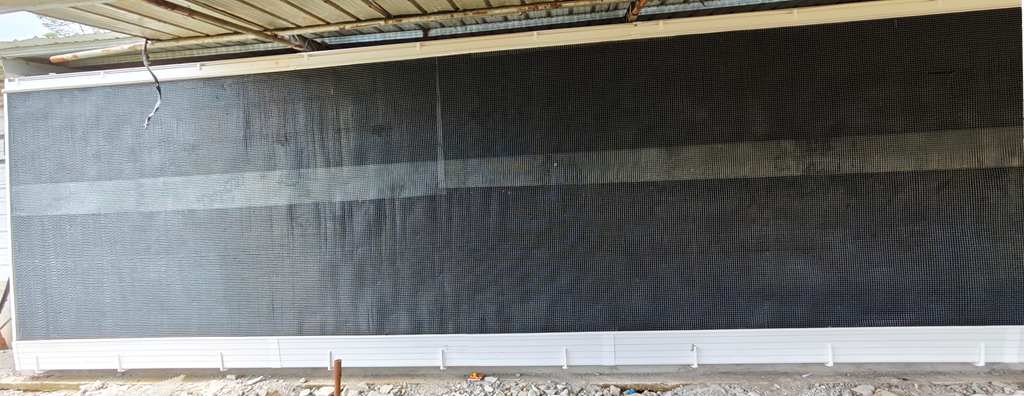

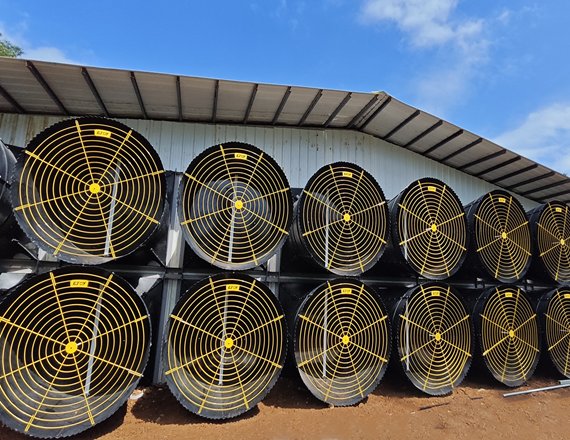

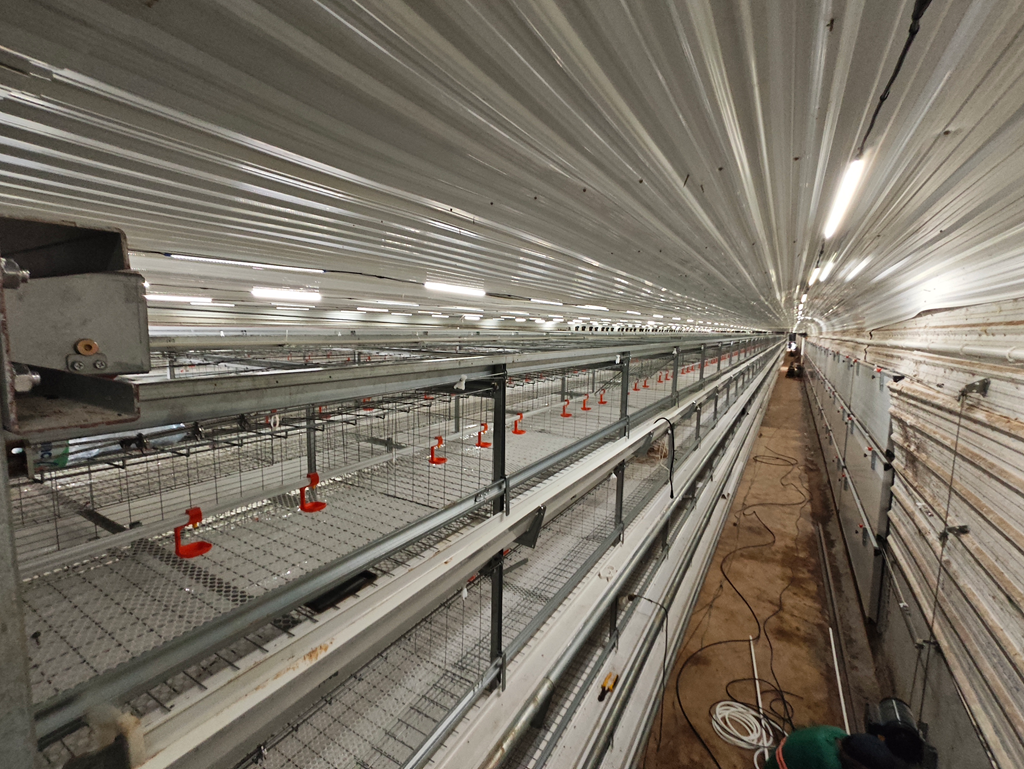

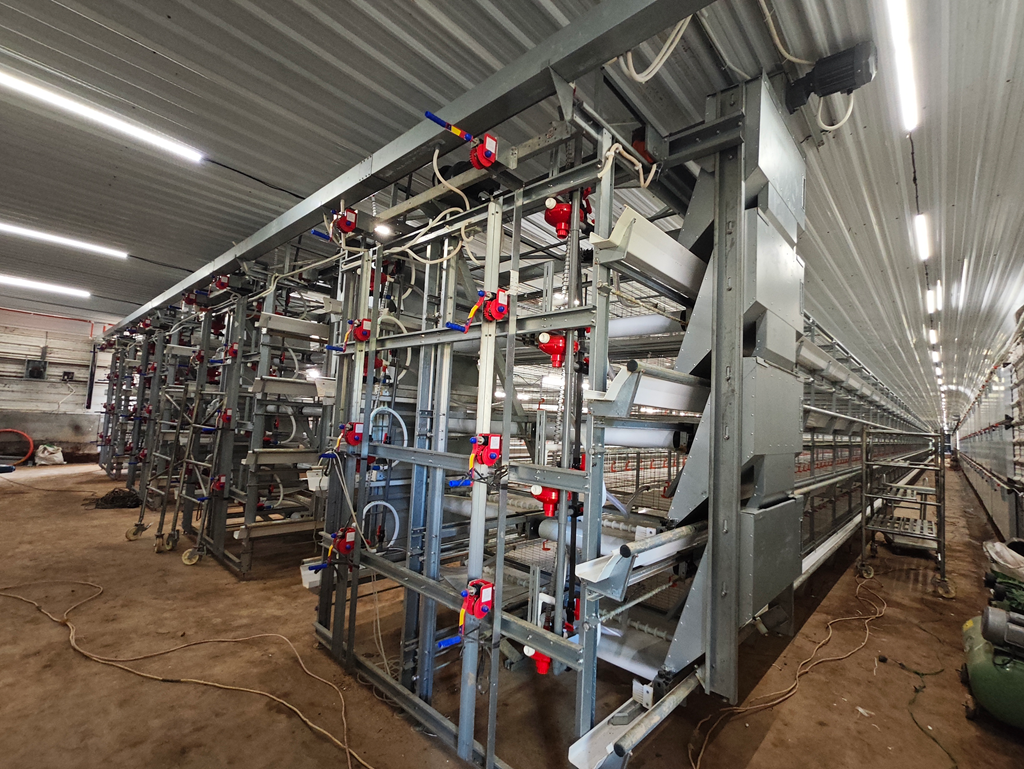

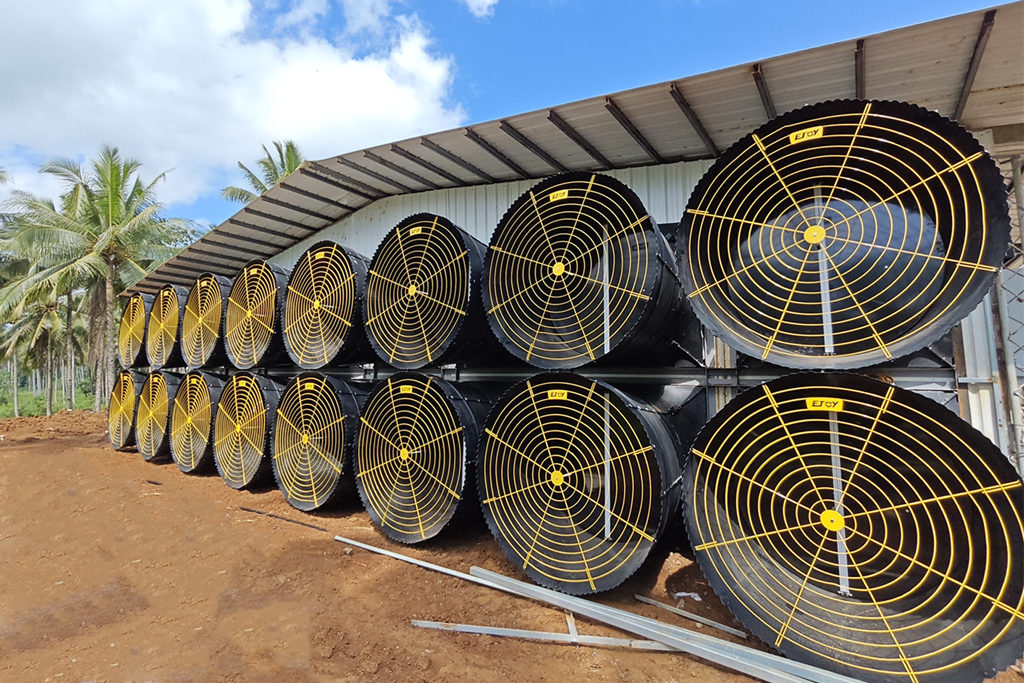

Our projects
Note:
You can watch a video of the project by clicking on the first photo.
Advantage
Advantage
※ Developing Low Noise Biomimetic Fan Blades to Improve Fan Blade Efficiency
※ Impeller optimization design to reduce incoming flow loss
※ Permanent magnet motor configuration reduces operating energy consumption
※ Excellent air performance
※ Easy to clean and hygienic
※ Motor warranty for 2 years
※ Convenient installation method
