Parameter

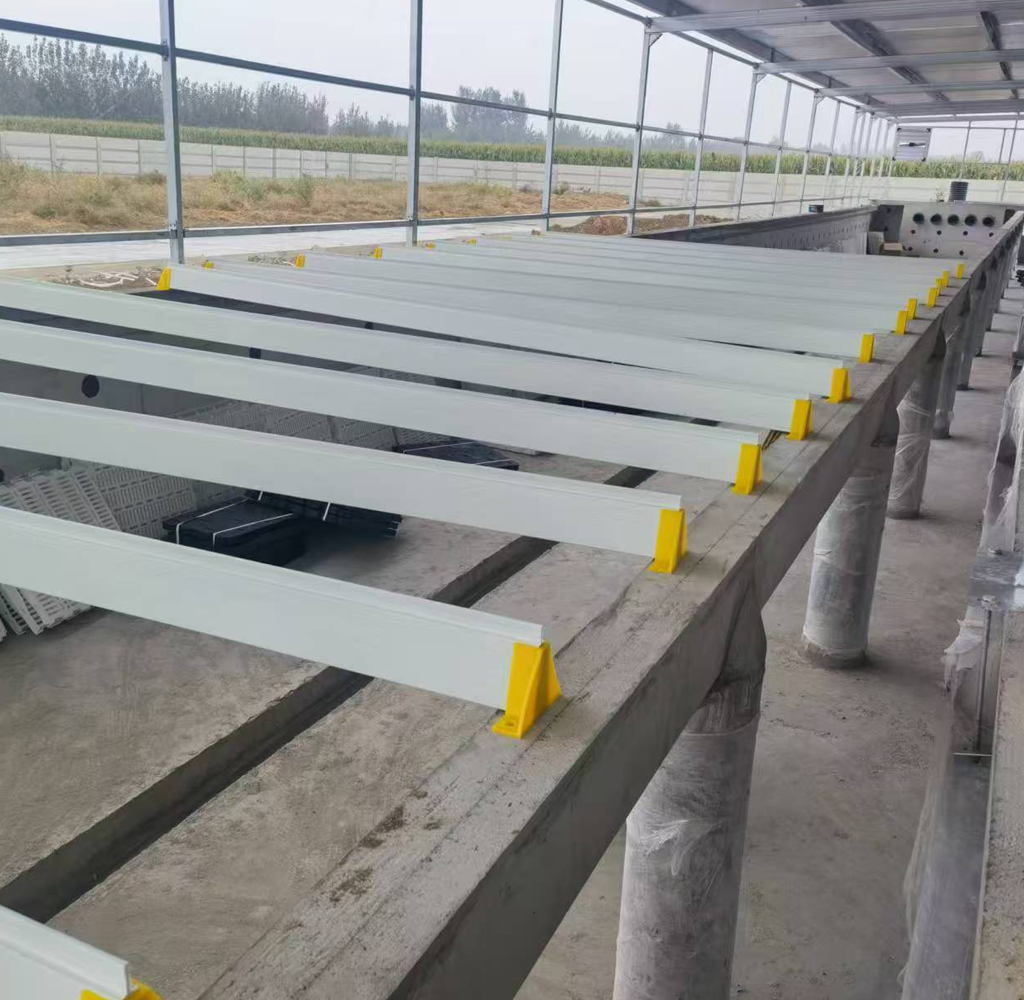

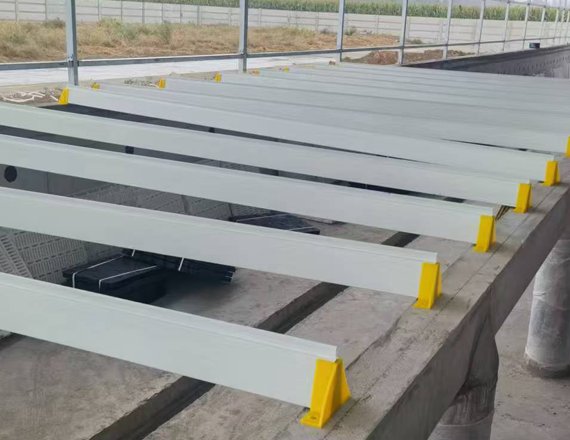

Fiberglass FRP Support Beams for Pig Farms

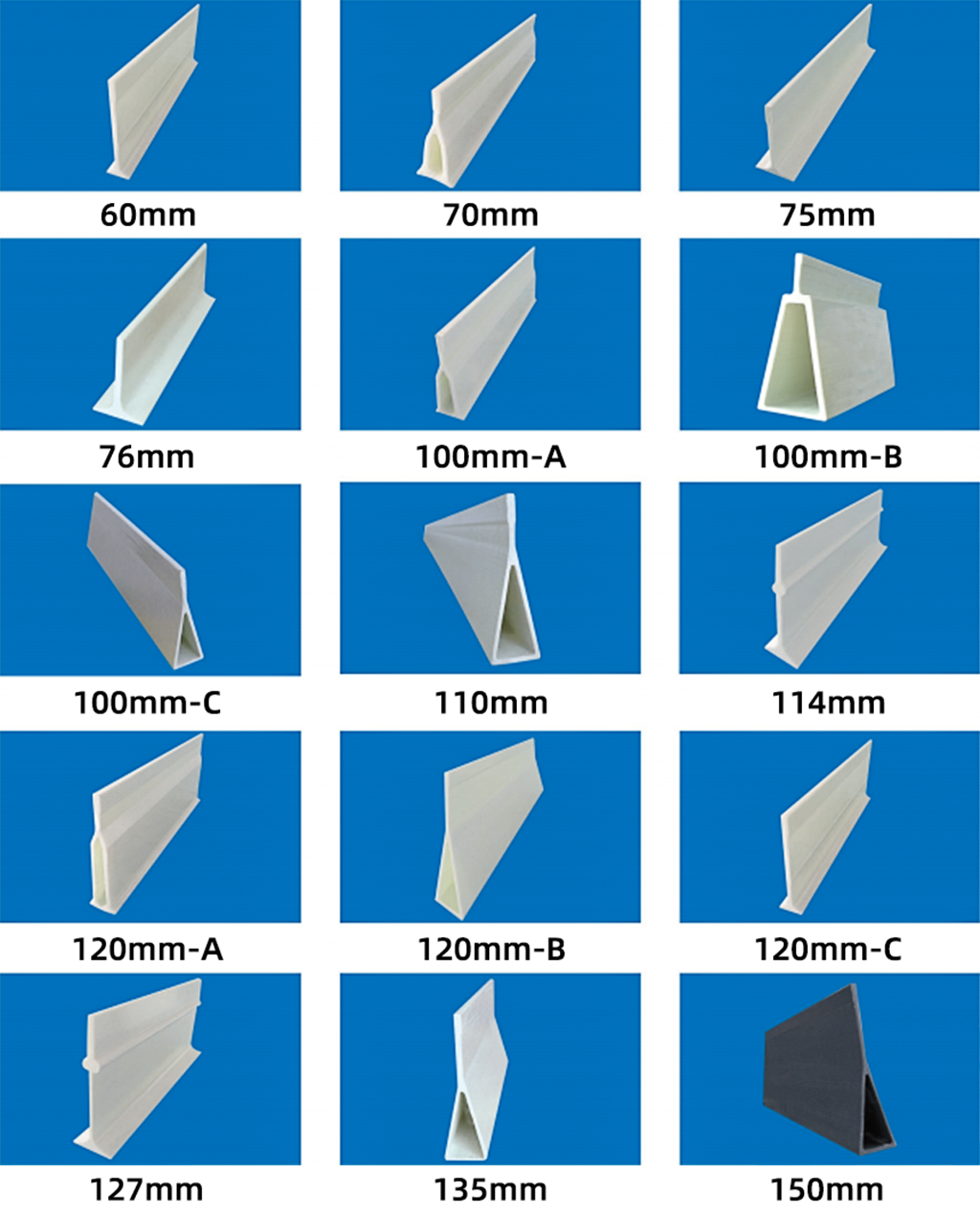

Type | Dimension (mm) | Weight (kg/m) |

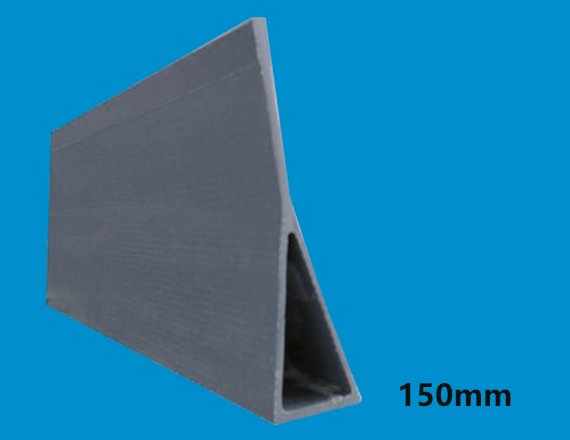

150mm | 150*36*5.6mm | 1.75kg/m |
135mm | 135*26*5.6mm | 1.75kg/m |

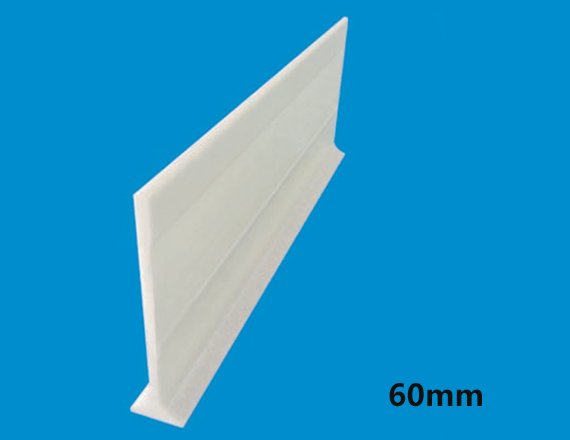

60mm | 60*25*5.4mm | 0.79kg/m |
120mm-A | 120*30*5.5mm | 1.65kg/m |
120mm-B | 120*32*5.2mm | 1.35kg/m |

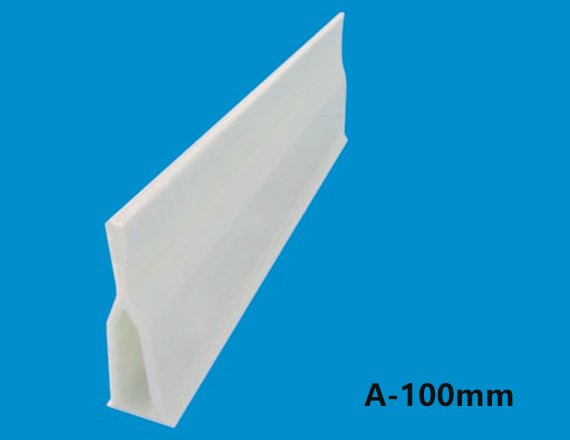

100mm-A | 100*30*6mm | 1.35kg/m |

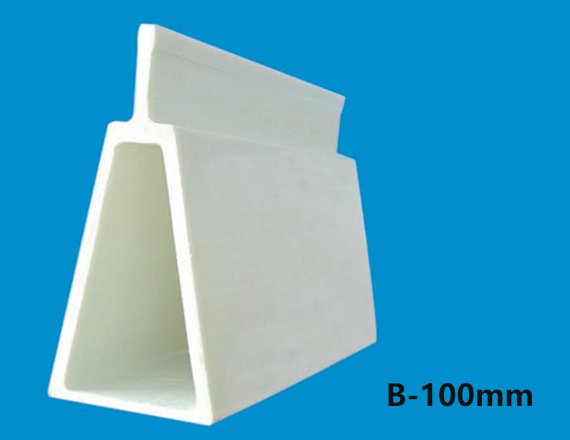

100mm-B | 100*50*5.5mm | 1.8kg/m |

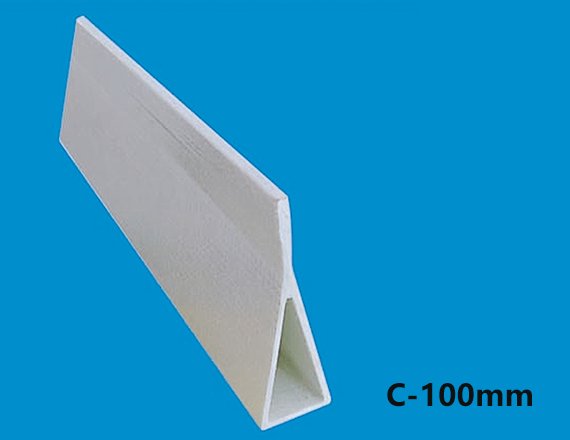

100mm-C | 100*32*5mm | 1.2kg/m |
About the beams, we use pultrusion process.
The pultrusion process is a continuous process to produce FRP profiles by heating extrusion molding and curing under the effect of traction.
The mainly material are UPR (unsatura -ted polyester resins), glass fiberyarn (9600), and glass fiber felt.
Advantage
1. Good chemical resistance, medium environment corrosion
2. High strength, light weight, shock resistance
3. Perfect magnetic and insulation
4. Aging resistance, long-life time, maintenance-free
5. Fire retardant, insulated

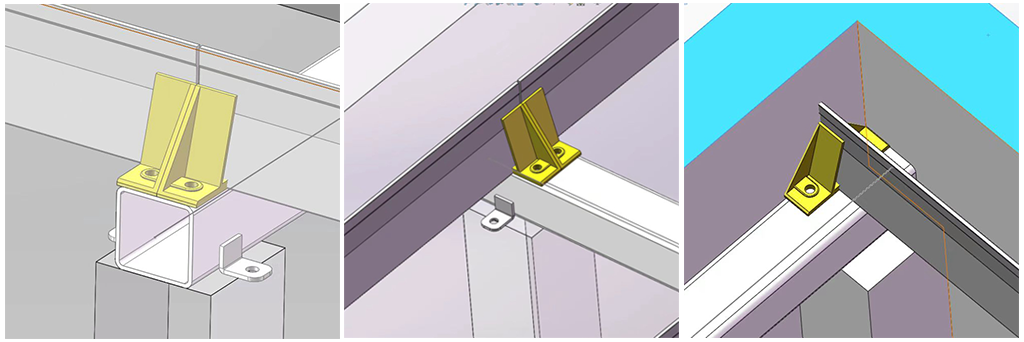

6. Easy installation and cutting quickly
7. Strong designability and nice appearance
