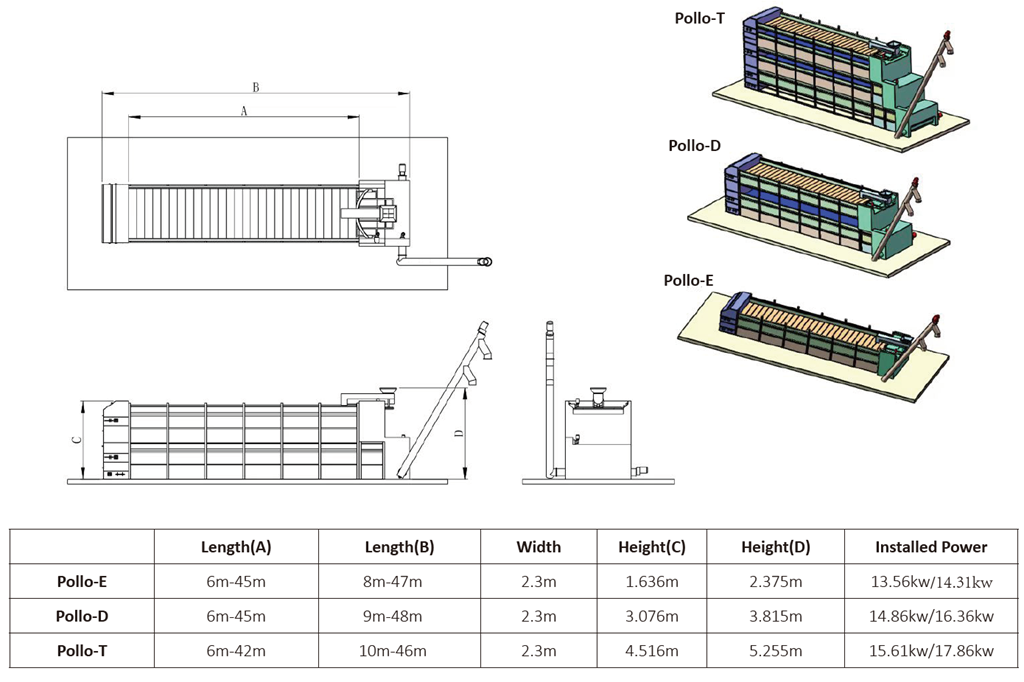

Parameter
Poultry Manure Drying Machine
Poultry manure can be dried using hot air. Outside air or farmhouse air can be used during the dry period. During the wet monsoon season the outside air and farmhouse air are not hot enough and the air needs to be heated up using external heat sources.
With this system it is possible to dry, pelletize and sanitize the poultry manure in a period of maximum 3 days.

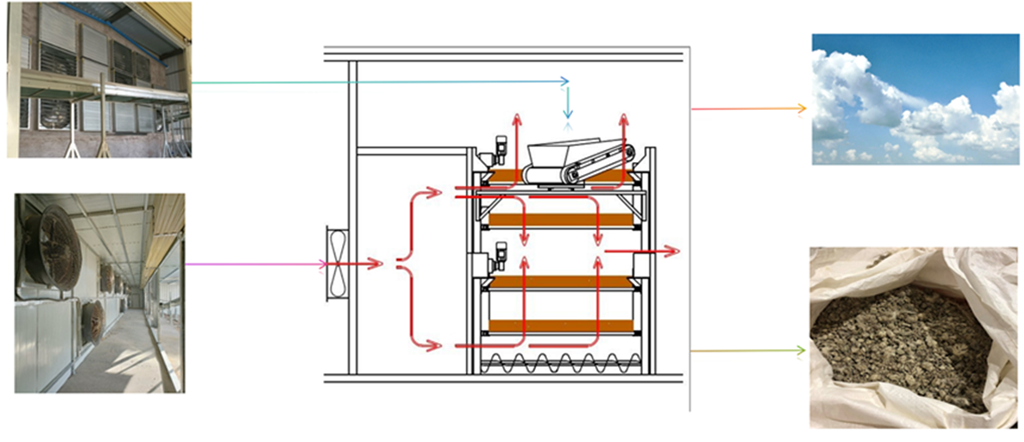

Operation Principle Overview
※ Equipment Structure:
Plate-type drying equipment;
※ Operating Time:
7 days a week, 24 hours a day automatic operation;
※ Heat Source:
Primarily uses air from inside the poultry house or outdoor air to dry poultry litter;
When the heat from outdoor/poultry house air is insufficient, additional heat sources are required.
※ Operating Time:
7 days a week, 24 hours a day automatic operation;
※ Processing Time:
Within 48 hours;
※ Processing Result:
Reduces wet poultry litter with around 75% moisture content to below 20%;
Product Details
※ Equipment Information:
Diameter 27 meters, 100,000 layer chickensmanure, dry poultry manure 3.2 tons/day
※ System Power:
Equipment: Installed power 14.7 KW Conveyor Belt: 2.2 KW/unit (assuming 5 units) Fans: 12 units * 1.5 KW/unit
※ Operating Time:
Equipment & Conveyor Belt: Operates 2-3 times daily, estimated for 2 hours; (14.7 KW + 11 KW) * 2 = 51.4 KW·h
Fans: On average, 8-10 fans are operated daily within a year, calculated as 10 fans running 24 hours;
10 * 1.5 * 24 = 360 KW·h
※ Daily Electricity Consumption:
Total electricity consumption: 411.4 KW·h* 0.65 CNY/KW·h= 267.41 CNY
※ Other Costs:
Labor cost: 4000 CNY/month/person, equivalent to 133.3 CNY/day.
(One employee can manage multiple devices simultaneously)
※ Total Operating Cost:
Approximately 400.71 CNY per day, which is 125 CNY per ton of dry poultry manure.
Features

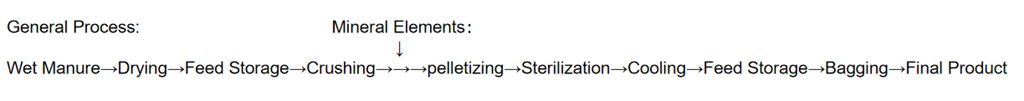

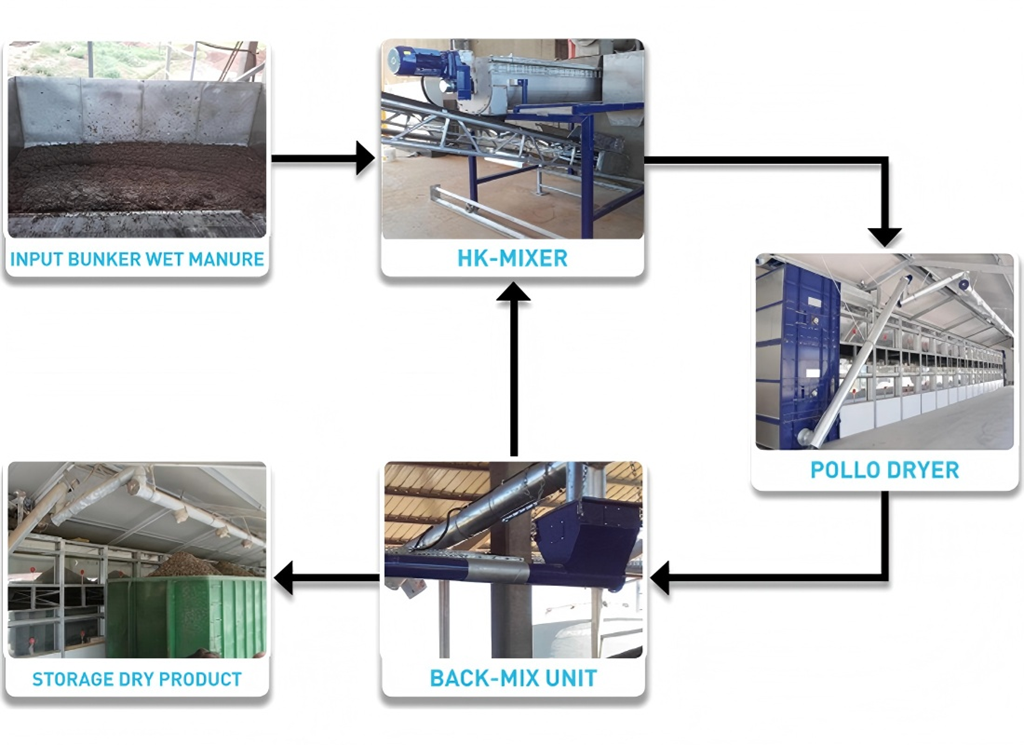

Production Process Flow Diagram

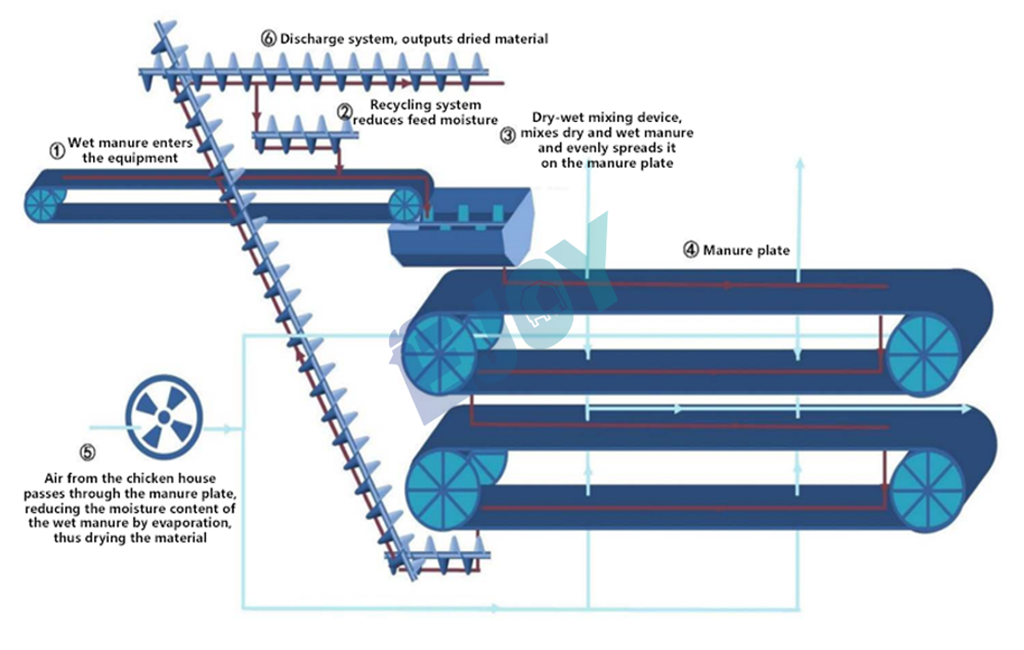

Operating Principle
