- Parameter
- Features
- Detailed introduction
Parameter
Regular style

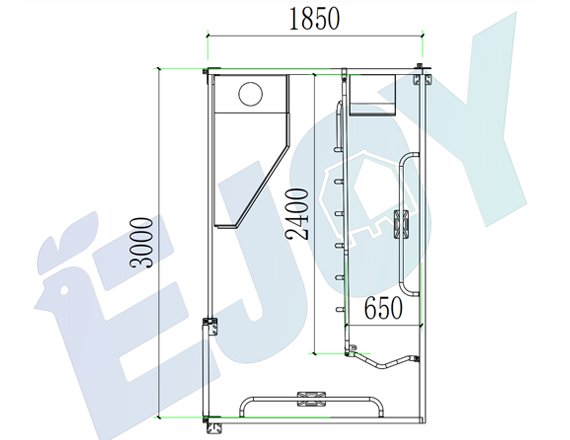

● Size: 3*1.85m；It can also be customized
● Stall frame: φ32×2.5mm round tub
● Piglet fence, PVC board, 35mm thickness, 500mm height
● Anticorrosion treatment, overall hot-dip galvanized, the thickness of galvanized no less than 80μm;
● Stainless steel standard fittings;
● Both sides of the crate are adjustable.
Features
● The sows' positions can be adjusted according to need, freeing the sows from oppression in confined stalls, ensuring the sow' s smooth delivery; the back door can open entirely, for the sows to enter and exist;
● Available sizes: 3mx1.85m and etc, the stall width can be adjusted by the sow' s size and parity, avoiding the sow pressing on piglets.
● Free walking lane at the back of the farrowing stalls, for the piglets' movement;
● Feces cleaning openings on perforated floors in the farrowing stalls, easy for cleaning;
● Unique design makes the PVC panel easier to assemble, clean and sterilize.
● The entire stall is hot-dip galvanized; the galvanization standard is above the national standard, for a longer service life.
